Slider

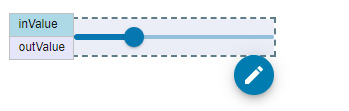

Represents a slider control that allows users to select a value from a range.

Slider

Properties

Height
Defines the CSS height of the control.
InitialIsEnabled
Defines the initial enabled state of the component that is used before the first value is set through the connection.
InitialIsVisible
Defines the initial visibility of the component that is used before the first value is set through the connection.
InitialValue
Defines the initial value of the slider.
IsEnabled
Defines the enabled state of the component.
IsVisible
Defines the visibility of the component.
Margin
Defines the CSS margin of the control.
MaxHeight
Defines the CSS max-height of the control.
Maximum
Defines the maximum value of the slider.
MaxWidth
Defines the CSS max-width of the control.
MinHeight
Defines the CSS min-height of the control.
Minimum
Defines the minimum value of the slider.
MinWidth
Defines the CSS min-width of the control.
Name
Defines the control name that identifies the control in the program and in the XAML. The name must be unique within the parent endpoint.
Step
Defines the step size for the slider.
Value
Defines the current value of the slider.
Width
Defines the CSS width of the control.

Events

ValueChanged Occurs when the value of the slider changes.
