DrawCoordinateSystems_SingleColor

This is Filter Equivalent. This function may be present in generated code, but should not be used in hand-written code.

Header:	AVL.h
Namespace:	avs

Draws coordinate systems on an image with a single color.

Syntax

void avs::DrawCoordinateSystems_SingleColor
(
	const avl::Image& inImage,
	atl::Conditional<const atl::Array<atl::Conditional<avl::CoordinateSystem2D>>&> inCoordinateSystems,
	atl::Optional<const avl::CoordinateSystem2D&> inCoordinateSystemAlignment,
	const avl::Pixel& inColor,
	const avl::DrawingStyle& inDrawingStyle,
	const float inArrowSize,
	const float inPixelScale,
	const bool inForceRgb,
	avl::Image& outImage
)

Parameters

Name	Type	Range	Default	Description
inImage	const Image&			Input image
inCoordinateSystems	Conditional<const Array<Conditional<CoordinateSystem2D>>&>		{ }
inCoordinateSystemAlignment	Optional<const CoordinateSystem2D&>		NIL
inColor	const Pixel&
inDrawingStyle	const DrawingStyle&		DrawingStyle ( DrawingMode: HighQuality Opacity: 1.0f Thickness: 1.0f Filled: False PointShape: Nil PointSize: 1.0f )
inArrowSize	const float	0.0 -	5.0f
inPixelScale	const float	0.0 -	20.0f	How many pixels long will be axis of a coordinate system with unit scale
inForceRgb	const bool		True	Filter will convert monochromatic image to RGB if needed
outImage	Image&			Output image

In-place Processing

This function supports in-place data processing - you can pass the same reference to inImage and outImage

Hints

Define inCoordinateSystems. This will be the primitives to be drawn.
Define inColor. Please note, that on an N-channel image only first N components of the color will be used.
Set inDrawingStyle to control quality, opacity, thickness, filling, point shapes and sizes.

Examples

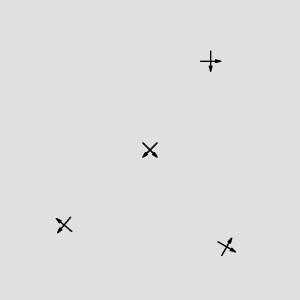

Example usage of the DrawCoordinateSystems_SingleColor on an empty image.
