AVL.ExtractBlobs_Intensity(AvlNet.Image, AvlNet.Region, AvlNet.IntensityThresholdParams, AvlNet.RegionProcessingParams, AvlNet.BlobSplittingParams, AvlNet.Region[])

Segments an image into blobs by thresholding.

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax


public static void ExtractBlobs_Intensity(
	AvlNet.Image inImage,
	AvlNet.Region inRoi,
	AvlNet.IntensityThresholdParams inThresholdParams,
	AvlNet.RegionProcessingParams inRegionProcessingParams,
	AvlNet.BlobSplittingParams inBlobSplittingParams,
	out AvlNet.Region[] outBlobs
)

Parameters

inImage
Type: AvlNet.Image
Image from which blobs are extracted
inRoi
Type: AvlNet.Region
Range of pixels to be processed, or null.
inThresholdParams
Type: AvlNet.IntensityThresholdParams
Parameters for thresholding an image
inRegionProcessingParams
Type: AvlNet.RegionProcessingParams
Parameters for opening and closing of a region
inBlobSplittingParams
Type: AvlNet.BlobSplittingParams
Parameters for splitting region into blobs
outBlobs
Type: AvlNet.Region
Blobs extracted from the input image

Description

This filter can be used to quickly segment an image. It performs a series of operations on inImage:

  • image is thresholded by ThresholdToRegion using parameters from inThresholdParams
  • resulting region is opened and then closed by OpenRegion and CloseRegion using parameters from inRegionProcessingParams
  • resulting region is split into blobs by SplitRegionIntoBlobs using parameters from inBlobSplittingParams

Examples

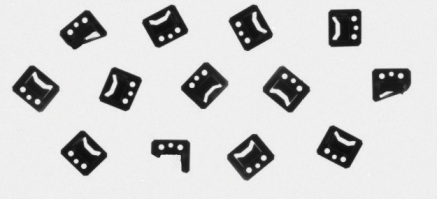

ExtractBlobs_Intensity performed on the sample image with inThresholdParams.MaxIntensity = 84.0 and inRegionProcessingParams.ClosingRadius = 10.
