PhotometricStereo_General_Perform

Basic

Module: Photometric

Computes surface normals using images with light source in different places.

Name Type Description
Input value inImages ImageArray

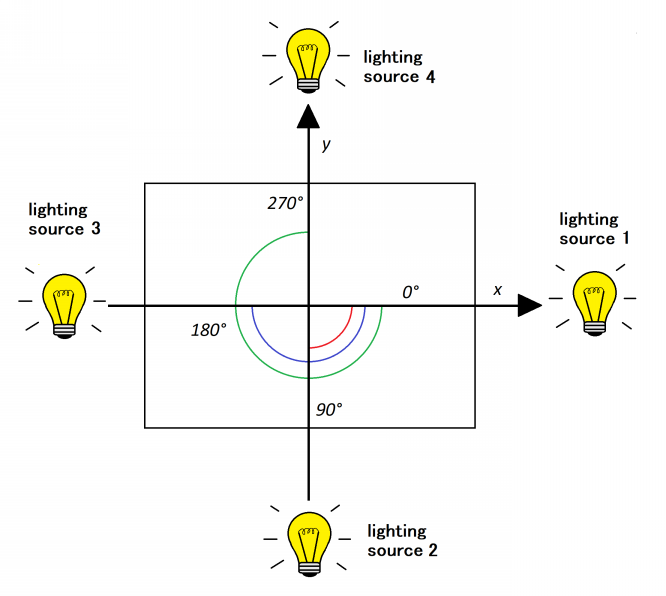

Input value inLightXYAngles RealArray Angle of light source on XY plane

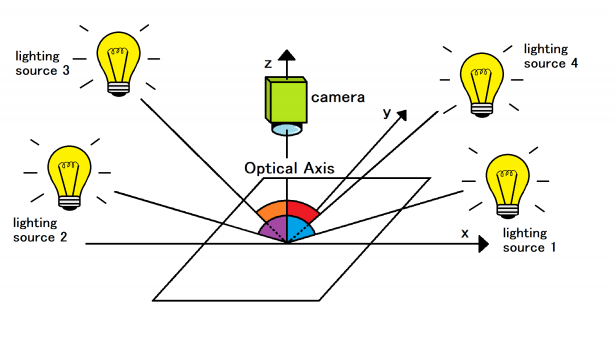

Input value inLightZAngles RealArray Angle between light source and normal, where normal is camera optical axis
Output value outSurfaceNormals Image
Output value outIntensities Image
Output value outAlbedo Image

Hardware Acceleration

This operation supports automatic parallelization for multicore and multiprocessor systems.

Errors

This filter can throw an exception to report error. Read how to deal with errors in Error Handling.

List of possible exceptions:

Error type Description
DomainError Different image dimensions on input in PhotometricStereo_General_Perform.
DomainError Different types of images on input in PhotometricStereo_General_Perform.
DomainError Inconsistent array sizes in PhotometricStereo_General_Perform.
DomainError Not enough images on input in PhotometricStereo_General_Perform.
DomainError Not single-channel image on input in PhotometricStereo_General_Perform.

Complexity Level

This filter is available on Basic Complexity Level.
