PhotometricStereo_General_Perform


Header: AVL.h
Namespace: avl
Module: Photometric

Computes surface normals using images with light source in different places.

Syntax

C++
C#

void avl::PhotometricStereo_General_Perform
(
	const atl::Array<avl::Image>& inImages,
	const atl::Array<float>& inLightXYAngles,
	const atl::Array<float>& inLightZAngles,
	avl::Image& outSurfaceNormals,
	avl::Image& outIntensities,
	avl::Image& outAlbedo
)

Parameters

Name Type Default Description
Input value inImages const Array<Image>&

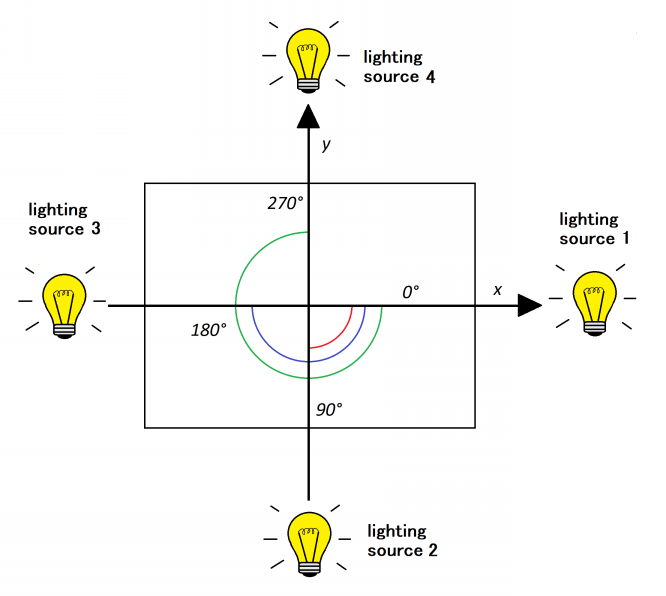

Input value inLightXYAngles const Array<float>& Angle of light source on XY plane

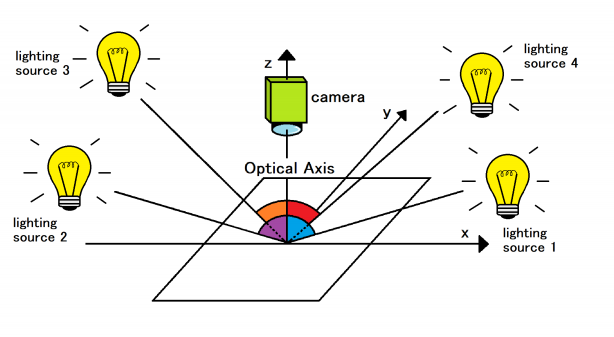

Input value inLightZAngles const Array<float>& Angle between light source and normal, where normal is camera optical axis
Output value outSurfaceNormals Image&
Output value outIntensities Image&
Output value outAlbedo Image&

Hardware Acceleration

This operation supports automatic parallelization for multicore and multiprocessor systems.

Errors

List of possible exceptions:

Error type Description
DomainError Different image dimensions on input in PhotometricStereo_General_Perform.
DomainError Different types of images on input in PhotometricStereo_General_Perform.
DomainError Inconsistent array sizes in PhotometricStereo_General_Perform.
DomainError Not enough images on input in PhotometricStereo_General_Perform.
DomainError Not single-channel image on input in PhotometricStereo_General_Perform.
