MakeConditional


This is Filter Equivalent. This function may be present in generated code, but should not be used in hand-written code.

Header: STD.h
Namespace: avl
Module: FoundationLite

Checks a condition and: if the condition is True, then it copies the input object to the output; otherwise returns Nil.

Applications: Introduces conditional data flow on a condition defined by the user. This filter can be used to skip some parts of the program - e.g. when a detected object does not fulfill some quality criteria.

Syntax

void avl::MakeConditional
(
	const Type& inObject,
	const bool inCondition,
	typename atl::ToConditionalType<Type>::Type& outConditionalObject
)

Parameters

Name Type Default Description
Input value inObject const Type& The data to be conditionally passed onto the output or not
Input value inCondition const bool Determines whether the data is passed onto the output or not
Output value outConditionalObject typename ToConditionalType<Type>::Type& The object if the condition is met or nothing otherwise

Description

This function is a part of Conditional Execution technique in Aurora Vision Studio and should not be used in Aurora Vision Library. This functionality can be achieved using the "if" statement

Hints

  • This filter creates a full copy of the input object. Thus, if you need the highest possible speed, use this filter only with primitive types. An alternative is to use Variant Step macrofilters which are fast and elegant.

Examples

inObject = 5
inCondition = True
outConditionalObject = 5
inObject = 5
inCondition = False
outConditionalObject = Nil

Remarks

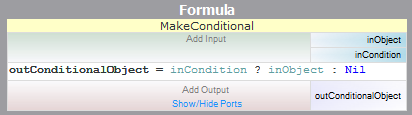

This filter can be replaced with the following formula:

See Also

  • MergeDefault – Copies an object from a conditional input to an non-conditional output, replacing Nil with a predefined default value.
