CreateCoordinateSystemFromPoint

Basic

Module: FoundationLite

Creates a coordinate system with the specified origin.

Applications

Most often used to define an object alignment from results of 1D Edge Detection or Blob Analysis.
Name Type Range Description
Input value inPoint Point2D Origin of the created coordinate system
Input value inAngle Real
Input value inScale Real 0.001 -
Input value inScaleDivisor Real 0.001 -
Output value outCoordinateSystem CoordinateSystem2D

Hints

  • Connect inPoint to a computed point, where you want to anchor a new coordinate system.
  • Optionally set inAngle to define the rotation.
  • Optionally set inScale and inScaleDivisor to obtain a custom scale.

Examples

Description of usage of this filter can be found in examples and tutorial: Blister Inspection (NET GmbH), Bottle Inspection, Cap (Easy), Washers, Cap (Advanced), Parallel Enumeration, Bottle Inspector Part 2: Measuring Liquid Level, Bottle Inspector Part 3: Foam Detection.

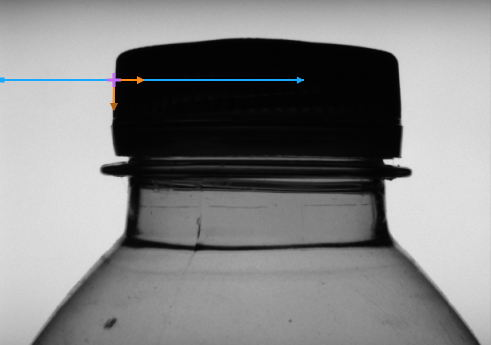

A local coordinate system created from a point. Here, the point is located with a 1D Edge Detection filter.

Remarks

Read more about Local Coordinate Systems in Machine Vision Guide: Local Coordinate Systems.

Complexity Level

This filter is available on Basic Complexity Level.

Filter Group

This filter is member of CreateCoordinateSystem filter group.
