CreateCoordinateSystemFromRectangle


Module: FoundationLite

Creates a coordinate system from a rectangle.

Applications

Most often used to define an object alignment from a filter like RegionBoundingRectangle.
Name Type Range Description
inRectangle Rectangle2D
inPointAnchor Anchor2D
inRelativeAngle Real
inScale Real 0.001 -
inScaleDivisor Real 0.001 -
outCoordinateSystem CoordinateSystem2D

Hints

  • Connect inRectangle to a computed rectangle representing a new coordinate system.
  • Optionally set inScale and inScaleDivisor to obtain a custom scale.
  • Optionally set inRelativeAngle to modify the rotation.

Examples

Description of usage of this filter can be found in examples and tutorial: Badge Measurement, Blister Inspection (NET GmbH), Button Presence, Chocolate Cookies Inspection 3D.

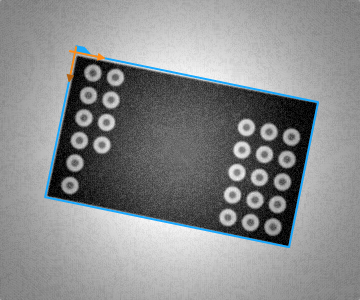

A local coordinate system created from a rectangle.

Remarks

Read more about Local Coordinate Systems in Machine Vision Guide: Local Coordinate Systems.

Complexity Level

This filter is available on Basic Complexity Level.

Filter Group

This filter is member of CreateCoordinateSystem filter group.
