Tutorial Exercises

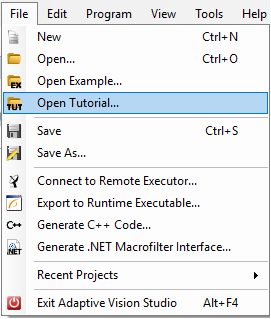

To open Tutorial Exercise in Adaptive Vision Studio one should select File → Open Tutorial and choose from available projects.

No.	Image	Name	Description
1.		Read the Barcode	Finding and reading barcodes
2.		Read the QR Code	Finding and reading QR Codes
3.		Count the Mounts	Finding element count using Blob Analysis
4.		Classify the Mounts	Finding damaged mounts using Blob Analysis
5.		Count Nails	Selecting particular elements among various types of elements
6.		Sorting Blobs	Sorting found blobs and selecting particular elements
7.		Detecting Chocolate Coverage on a Wafer	Finding not covered chocolate using Blob Analysis
8.		Extracting Capsule Shape	Extracting object from background using 2D Edge detection
9.		Finding PCB Missing Covering	Finding not covered elements using Blob Analysis
10.		Edge-based Template Matching: Gasket	Finding object using Edge-based Template Matching
11.		Gray-based Template Matching: Basic	Finding object using Gray-based Template Matching
12.		Gray-based Template Matching: Missing Chip	Finding a missing element using Gray-based Template Matching
13.		Shape Fitting: Gasket	Measuring distance between two holes
14.		Shape Fitting: Measuring holes	Performing basic measurements using shape fitting
15.		Image Modification Using the HMI	Perform pipeline of the image modifications using configurable HMI
16.		Generating Plots Using Formulas	Generating plots using formulas and array execution mode
17.		Conditions in Formulas	Using conditions in formulas
18.		Bottle Inspector Part 1: Counting Bottles	Counting bottles using 1D Edge detection algorithms
19.		Bottle Inspector Part 2: Measuring Liquid Level	Measuring liquid level in bottles using 1D Edge Detection algorithms
20.		Bottle Inspector Part 3: Foam Detection	Checking for foam in bottle using Image Analysis
21.		Counting Saw Teeth	Counting elements using 1D Edge Detection algorithms
22.		Finding Razor Head Defects	Finding defects in produced elements
23.		Measure Objects	Measuring object dimensions using Template Matching an Shape Fitting
24.		Reading Numbers from Images	Reading data from LCD display using OCR technique
25.		Removing Camera Lens Distortion: Chessboard	Removing lens distortion using chessboard calibration pattern
26.		Removing Camera Lens Distortion: Square pattern	Removing lens distortion using a non-standard squares' matrix pattern
27.		TcpIp Shoutbox Server	How to create an application that receives text messages through Tcp/Ip
28.		TcpIp Shoutbox Client	How to connect to a server and send text messages through TcpIp
29.		Calculating factorial using registers	Example shows how to calculate factorial using macrofilter registers.
30.		Dealing with domain errors using the error handlers	Example shows how to create errors handlers and how to use them.
31.		Using HMI multipanel control	HMI control
