Conditions in Formulas (conjunction)

Aim

Create an algorithm that checks if the input image contains a certain set of objects.

Inspection should pass in three cases:

  • There is a mount and two bolts in the image or
  • there is a mount and a single washer or
  • there is a mount and a single washer and two bolts.

Input

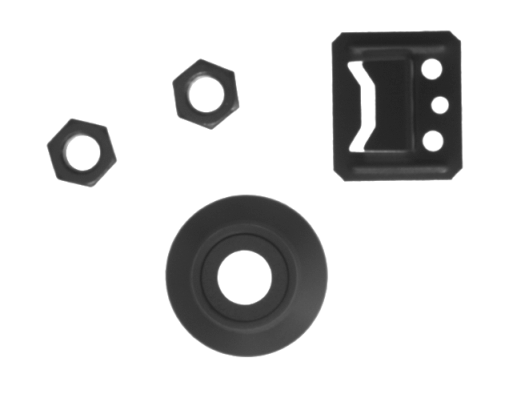

The set of images with different objects.

Images are stored in conjunction directory.

Output

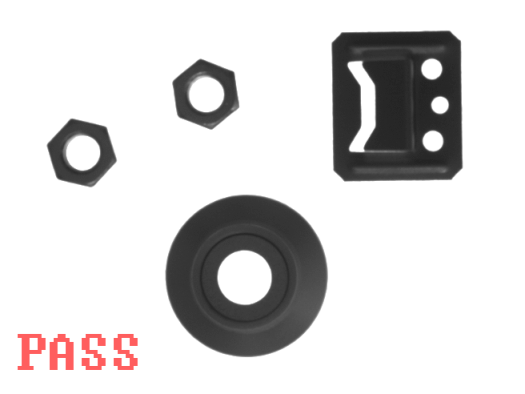

Result of inspection drawn on the input image.

Hints

Use Edge-based Template Matching to find particular types of objects.

Use formulas to analyze the results of Template Matching.

Solution (AVS)

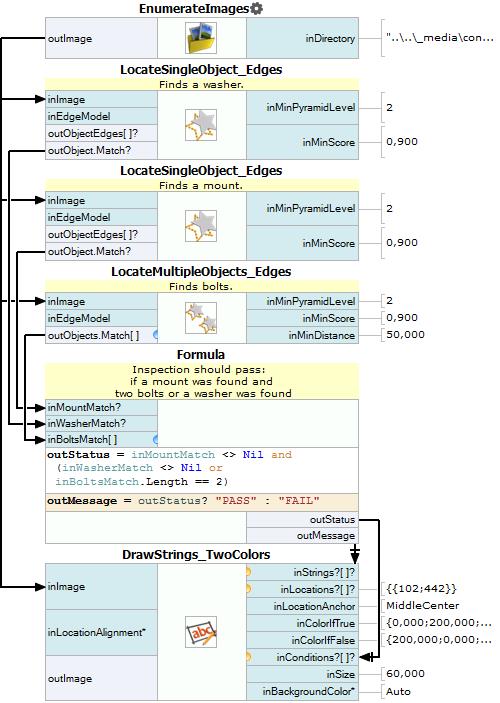

  1. Add two LocateSingleObject_Edges filters and one LocateMultipleObjects_Edges filter (for bolts) and create models as shown in the images below:

    • Model of a washer:

    • Model of a mount:

    • Model of a bolt:

    • In all these filters set inMinScore to 0,9. Also set inMinPyramidLevel to 2. In the filter responsible for finding bolts, set inMinDistance to 50.

  2. Add a new formula to the project and create three inputs: inMountMatch, inWasherMatch and inBoltsMatch from consecutive outputs of the previous filters.

  3. Create an output outStatus with formula:

    outStatus = inMountMatch <> Nil and (inWasher <> Nil or inBoltsMatch.Length == 2)

  4. Create an output outMessage with formula:

    outMessage = outStatus ? "PASS" : "FAIL"

  5. Draw the message on the input image using DrawStrings_TwoColors filter.

Additional Tasks

  • Create the equivalent of the formula using blocks.

  • Make the condition more strict to pass only if two bolts are present and a washer is not present. Or, if a washer is present and no bolts are present. Tip: it is enough to change a single operator to provide this functionality.
