CircleSection


Computes an arciform section of the circle perimeter.

Syntax

C++
C#

void avl::CircleSection
(
	const avl::Circle2D& inCircle,
	float inStartAngle,
	float inSweepAngle,
	avl::Arc2D& outArc
)

Parameters

Name Type Default Description
inCircle const Circle2D& Input circle
inStartAngle float Direction at which the arc begins
inSweepAngle float Angular length of the arc (may be negative)
outArc Arc2D&

Examples

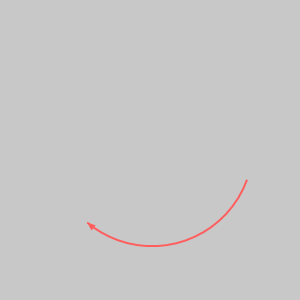

CircleSection performed on the sample circle, inStartAngle = 20.0 and inSweepAngle = 110.0.
