AVL.FitCircleToStripe(AvlNet.Image, AvlNet.CircleFittingMap, AvlNet.StripeScanParams, AvlNet.Selection, AvlNet.LocalBlindness, float, AvlNet.CircleFittingMethod, AvlNet.MEstimator?, AvlNet.Circle2D?, AvlNet.Circle2D?, AvlNet.Circle2D?, AvlNet.Stripe1D?[], AvlNet.Point2D[], AvlNet.Profile, AvlNet.Profile[], AvlNet.Profile[])

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void FitCircleToStripe(
	AvlNet.Image inImage,
	AvlNet.CircleFittingMap inFittingMap,
	AvlNet.StripeScanParams inStripeScanParams,
	AvlNet.Selection inStripeSelection,
	AvlNet.LocalBlindness inLocalBlindness,
	float inMaxIncompleteness,
	AvlNet.CircleFittingMethod inFittingMethod,
	AvlNet.MEstimator? inOutlierSuppression,
	out AvlNet.Circle2D? outCircle,
	out AvlNet.Circle2D? outInnerCircle,
	out AvlNet.Circle2D? outOuterCircle,
	out AvlNet.Stripe1D?[] outStripes,
	out AvlNet.Point2D[] outStripePoints,
	out AvlNet.Profile outDeviationProfile,
	out AvlNet.Profile[] diagBrightnessProfiles,
	out AvlNet.Profile[] diagResponseProfiles
)

Parameters

inImage: Type: AvlNet.Image
inFittingMap: Type: AvlNet.CircleFittingMap
inStripeScanParams: Type: AvlNet.StripeScanParams
inStripeSelection: Type: AvlNet.Selection
inLocalBlindness: Type: AvlNet.LocalBlindness
inMaxIncompleteness: Type: System.Single
inFittingMethod: Type: AvlNet.CircleFittingMethod
inOutlierSuppression: Type: System.Nullable<AvlNet.MEstimator>
outCircle: Type: System.Nullable<AvlNet.Circle2D>
outInnerCircle: Type: System.Nullable<AvlNet.Circle2D>
outOuterCircle: Type: System.Nullable<AvlNet.Circle2D>
outStripes: Type: System.Nullable<AvlNet.Stripe1D>
outStripePoints: Type: AvlNet.Point2D
outDeviationProfile: Type: AvlNet.Profile
diagBrightnessProfiles: Type: AvlNet.Profile
diagResponseProfiles: Type: AvlNet.Profile

Description

The operation tries to fit a given circle to stripe present in the inImage image. Internally, it performs a series of scans with the ScanSingleStripe filter using inFittingMap previously generated from the object being fitted. The found points are then used to determine the actual position of the circle in the image. Only inMaxIncompleteness fraction of these scans may fail. If the fitting according to the given parameters is not possible, outCircle is set to Nil.

Examples

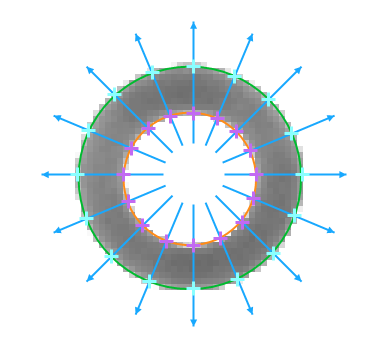

Fitting a circle to the dark circular stripe of a washer
(inStripeScanParams.Polarity = Dark).

Remarks

For more information about local coordinate systems please refer to the following article.

This filter is a part of the Shape Fitting toolset. To read more about this technique, one can refer to the Shape Fitting chapter of our Machine Vision Guide

Hardware Acceleration

This operation supports automatic parallelization for multicore and multiprocessor systems.
