AVL.ScanSingleStripe(AvlNet.Image, AvlNet.ScanMap, AvlNet.StripeScanParams, AvlNet.Selection, AvlNet.LocalBlindness, AvlNet.Stripe1D?, AvlNet.Profile, AvlNet.Profile)

Locates the strongest pair of edges across a given path.

Namespace:	AvlNet
Assembly:	AVL.NET.dll

Syntax


public static void ScanSingleStripe(
	AvlNet.Image inImage,
	AvlNet.ScanMap inScanMap,
	AvlNet.StripeScanParams inStripeScanParams,
	AvlNet.Selection inStripeSelection,
	AvlNet.LocalBlindness inLocalBlindness,
	out AvlNet.Stripe1D? outStripe,
	out AvlNet.Profile diagBrightnessProfile,
	out AvlNet.Profile diagResponseProfile
)

Parameters

inImage: Type: AvlNet.Image
Input image
inScanMap: Type: AvlNet.ScanMap
Data precomputed with CreateScanMap
inStripeScanParams: Type: AvlNet.StripeScanParams
Parameters controlling the stripe extraction process
inStripeSelection: Type: AvlNet.Selection
Selection mode of the resulting stripe
inLocalBlindness: Type: AvlNet.LocalBlindness
Defines conditions in which weaker edges can be detected in the vicinity of stronger edges, or null.
outStripe: Type: System.Nullable<AvlNet.Stripe1D>
Found stripe
diagBrightnessProfile: Type: AvlNet.Profile
Extracted image profile
diagResponseProfile: Type: AvlNet.Profile
Profile of the edge (derivative) operator response

Description

The operation scans the image using inScanMap previously generated from a scan path and locates the strongest stripe (i.e. a pair of opposite-polarity edges running across the path) of the given characteristics. If there is no such stripe then the outputs are set to NIL.

Examples

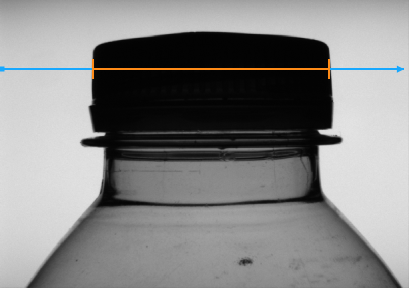

ScanSingleStripe locates the strongest stripe using a scan map representing the scan path above.

Remarks

For more information about local coordinate systems please refer to the following article.
