Calibration with Custom Grid

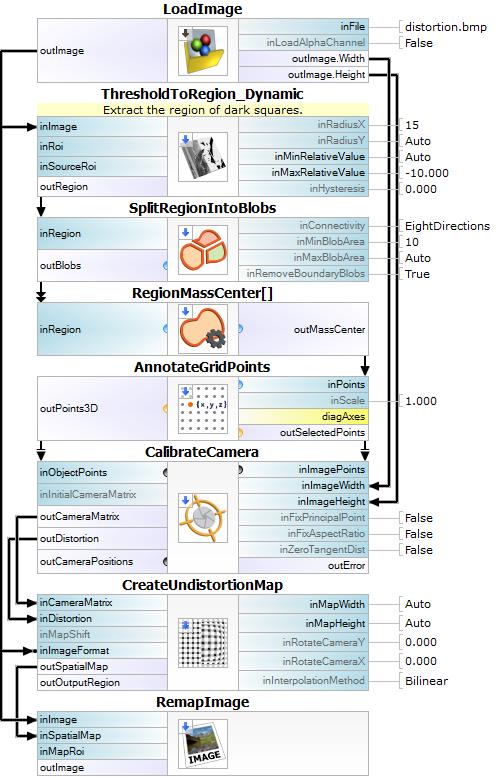

Macrofilter Main

Used Filters

►Click here to show the filters list.

▼Click here to hide the filters list.

Icon	Name	Description
	RemapImage	Fast (precomputed) image transformations, especially for view undistortion or object geometry correction (e.g. pos recognition of labels on cylindrical bottles).
	ThresholdToRegion_Dynamic	Useful in case of uneven illumination.
	RegionMassCenter	Computes a point with coordinates equal to the average coordinates of the region's pixels.
	CalibrateCamera	Recognition of lens distortion. Usually followed by CreateUndistortionMap.
	AnnotateGridPoints	Recognition of a custom regular grid, other than the standard chessboard, for the purpose of camera calibration.
	CreateUndistortionMap	Creation of a transform map that will be used with the RemapImage filter.
	LoadImage	Loads a single image from a file.
	SplitRegionIntoBlobs	Segmentation of a region into individual objects when the objects do not touch each other.
