Designing WebHMI

Introduction

Aurora Vision Studio, apart from the classic desktop HMI, allows users to create an interactive webpage version of the HMI which can be displayed in any web browser. The webpage is created within Aurora Vision Studio IDE in the WYSIWYG-like editor by manipulating the WebHMI controls on the page.

A simple WebHMI example: at the design time (left) and at run time displayed in the browser (right).

The WebHMI page is composed from the WebHMI controls. Some of the controls may contain other controls to build the hierarchy, e.g., the StackPanel and the TablePanel provide specific layout types, whereas the TabControl allows to arrange controls in different tab pages. At the top of the control hierarchy is the Window control, which may contain any single control.

The appearance of controls can be modified using the properties listed in the Properties Control when the control is selected and the WebHMI designer tab is active.

Communication with Aurora Vision application is achieved through connections with control ports and control events:

From a filter's output to a control's input, e.g., for displaying an image or text result.
From a control's output to a filter's input, as data sources for setting various parameters in a program with e.g., with sliders or checkboxes.
With a special kind of macrofilters executed in response to some action on the control, e.g., Button.Click.

Note: Communication between Aurora Vision Studio and the WebHMI frontend application is unsecured as it is transmitted over HTTP and WebSockets, both of which lack encryption. Therefore, we advise against making WebHMI accessible on public networks. Nonetheless, it is still possible to secure the WebHMI through the use of a proxy server, such as nginx.

Adding the WebHMI to the Project

To add a WebHMI subsystem, choose Edit » Add Web HMI... and select a WebHMI template that fits the target layout. The template is just a starting point that can be freely modified. Modifications include:

Adjusting selected control properties in the Properties Control
Content modifications through the action button, e.g., adding content, removing selected control, etc.

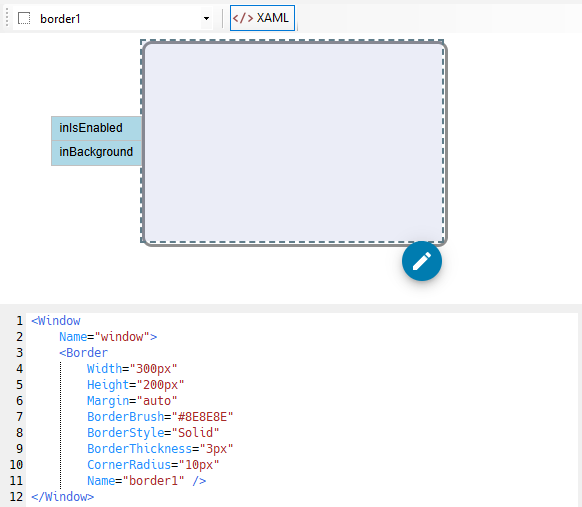

In particular, to set a PictureBox content for the Border control:

Select the Border control,
Click the action button
Click the Set Content... command
Select the PictureBox control from the control list

WebHMI Display

To display the WebHMI, open your web browser and, in the address bar, type the IP address of the PC running the Aurora Vision application, followed by the WebHMI Server Port number.
If you want to display the WebHMI in a web browser on the PC that runs the application, you may type localhost instead of the IP address.

The number of the WebHMI Server Port is available in Tools » Settings » Program Edition » Web HMI section.

The default values are 9090 for the Runtime Server and 9091 for the Design Server.

There are two variants of the WebHMI server: Designing and Runtime.
The Designing server allows the user to access WebHMI design mode via a web browser. The controls can be modified, and it displays the available ports that can be connected to the program.
The Runtime server presents the WebHMI during program execution. It doesn't allow modification of the WebHMI layout, permitting only the intended interaction with the controls during runtime.

Removing the WebHMI

The WebHMI subsystem can be removed from the project with the Edit » Remove Web HMI command.
