Perspective Removal
Aim:
The task is to remove perspective distortion of an object on the input image.
Input:
A single image with CD boxes affected with perspective distortion.
Output:
An undistorted image of the boxes' faces.

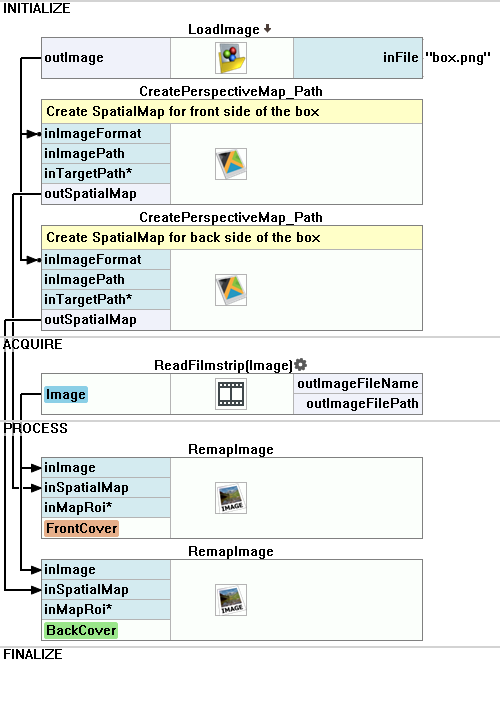

Macrofilter Main
Used Filters
| Icon | Name | Description |
|---|---|---|
 |
CreatePerspectiveMap_Path | Data preprocessing for fast perspective correction. The result is used by RemapImage. |
 |
LoadImage | Loads a single image from a file. |
 |
RemapImage | Fast (precomputed) image transformations, especially for view undistortion or object geometry correction (e.g. pos recognition of labels on cylindrical bottles). |
