DrawString


Header: AVL.h
Namespace: avl

Draws a string on an image.

Syntax

void avl::DrawString
(
	avl::Image& ioImage,
	const atl::String& inString,
	const avl::Location& inLocation,
	atl::Optional<const avl::CoordinateSystem2D&> inLocationAlignment,
	const avl::Anchor2D::Type inLocationAnchor,
	const avl::Pixel& inColor,
	const avl::DrawingStyle& inDrawingStyle,
	float inSize,
	float inOrientationAngle,
	atl::Optional<const avl::Pixel&> inBackgroundColor
)

Parameters

Name Type Default Description
Input will be modified ioImage Image&
Input value inString const String&
Input value inLocation const Location&
Input value inLocationAlignment Optional<const CoordinateSystem2D&> NIL
Input value inLocationAnchor const Anchor2D::Type MiddleCenter
Input value inColor const Pixel&
Input value inDrawingStyle const DrawingStyle&
Input value inSize float 12.0f Height of a character
Input value inOrientationAngle float 0.0f
Input value inBackgroundColor Optional<const Pixel&> NIL

Description

The operation draws a string on the ioImage aligning the inLocationAnchor location of the text at the inLocation of the ioImage. The height of the font is fixed and equals 16 pixels.

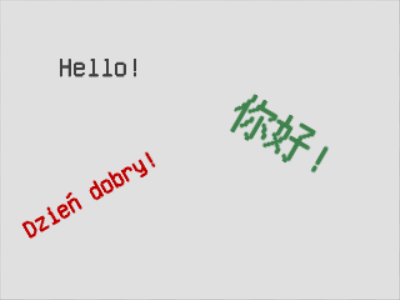

Usage of DrawString with various settings.
