ProjectPointOnLine


Header: AVL.h
Namespace: avl

Projects a point onto a line.

Syntax

void avl::ProjectPointOnLine
(
	const avl::Point2D& inPoint,
	const avl::Line2D& inLine,
	avl::Point2D& outProjectionPoint,
	float& outSignedDistance = atl::Dummy<float>()
)

Parameters

Name Type Default Description
Input value inPoint const Point2D&
Input value inLine const Line2D&
Output value outProjectionPoint Point2D&
Output value outSignedDistance float& Dummy<float>()

Examples

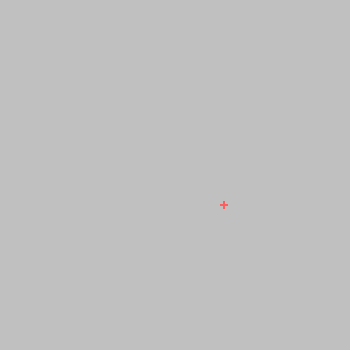

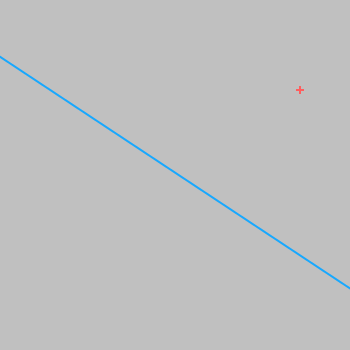

ProjectPointOnLine performed on point and line.

Errors

List of possible exceptions:

Error type Description
DomainError Indefinite line on input in ProjectPointOnLine.
