You are here: Start » Filter Reference » Region » Region Basics » CreateLineRegion
Basic| Module: | FoundationLite |
|---|
Creates a line region.
| Name | Type | Range | Description | |
|---|---|---|---|---|
 |
inLine | Line2D | ||
|
inLineAlignment | CoordinateSystem2D* | ||
|
inWidth | Real | 1.0 -  |
Width of output region line |
|
inFrameWidth | Integer | 0 - 65535 | |
|
inFrameHeight | Integer | 0 - 65535 | |
 |
outRegion | Region | Output region | |
|
outAlignedLine | Line2D | ||
Description
Filter creates a region defined by an input Line2D with width of inWidth.
Examples

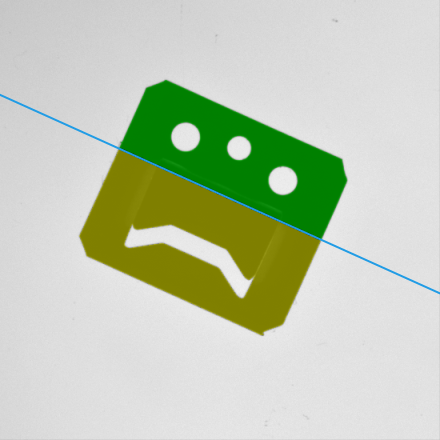

Filter CreateLineRegion is used to split region int two parts:
Complexity Level
This filter is available on Basic Complexity Level.
