You are here: Start » Filter Reference » Profile » Profile Spatial Transforms » RotateProfile
Basic| Module: | FoundationPro |
|---|
Moves the last element ahead of the first one (inShift times).
| Name | Type | Description | |
|---|---|---|---|
 |
inProfile | Profile | Input profile |
|
inShift | Integer | |
 |
outProfile | Profile | Output profile |
Description
Operation computes the profile of input profile elements shifted cyclically.
Examples

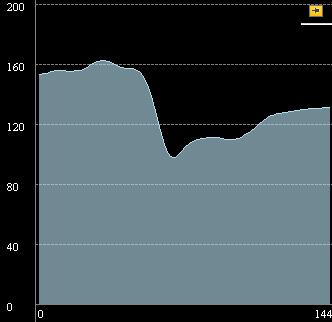

 Input profile |

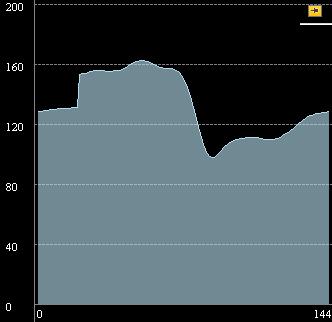

 Output profile1 |
RotateProfile performed on input profile with inShift = 20 produced outProfile = Output profile1

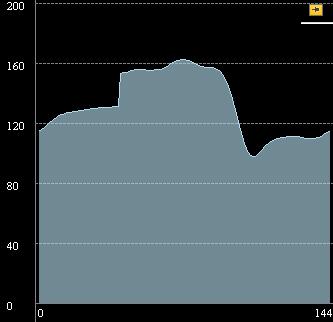

 Output profile2 |

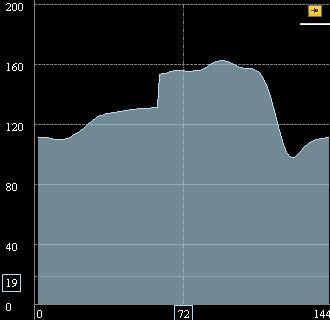

 Output profile3 |
RotateProfile performed on input profile with inShift = 40 produced outProfile = Output profile2 and operation performed on the same input profile with inShift = 60 produced outProfile = Output profile3
Complexity Level
This filter is available on Basic Complexity Level.
