You are here: Start » Filter Reference » Path » Polygon Features » PolygonArea
Basic| Module: | FoundationBasic |
|---|
Computes the area of polygon.
| Name | Type | Description | |
|---|---|---|---|
 |
inPolygon | Path | |
 |
outArea | Real |
Description
The operation computes the area of a polygon bounded by a closed path. The area is measured in square pixels. As paths in AVS are subpixel-precise, the result may be (and usually is) non-integer.
Note that if the input path is not a valid polygon (i.e. it has at least one self-intersection), the computation may lead to results that are not intuitive.
Examples
Area of the sample shape equals to 40652.37. |

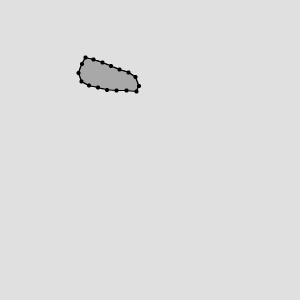

Area of the sample shape equals to 1287.675. |
Errors
This filter can throw an exception to report error. Read how to deal with errors in Error Handling.
List of possible exceptions:
| Error type | Description |
|---|---|
| DomainError | Open path on input in PolygonArea. |
Complexity Level
This filter is available on Basic Complexity Level.
See Also
- RegionArea – Computes the number of pixels contained in a region.
