Finds the maximum of the profile of turn angles of a path.
| Name | Type | Description | |
|---|---|---|---|
 |
inPath | Path | Input path |
|
inAllowedTurnDirection | TurnAngleDirection | Allows to detect only left-turns, only right-turns or both |
|
inResultPrecision | TurnAnglePrecision | Switches between pixel-precise or subpixel-precise detection of the found maximum |
 |
outMaximumTurnAngleIndex | Real | Index of found maximum |
|
outMaximumTurnAnglePoint | Point2D | Found point of a path with maximum turn angle |
|
outMaximumTurnAngleAngle | Real | Maximal turn angle of the input path |
Description
The operation computes the profile of turn angles of a path and finds the maximum of the profile. The inAllowedTurnDirection parameter restricts kind of turns taken into consideration (left-turns only, right-turns only or both), while inResultPrecision determines the precision of the resulting maximum point.
Examples
 |

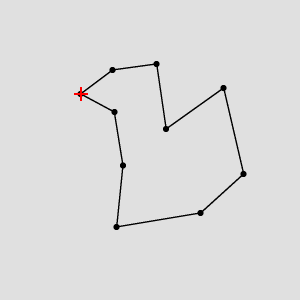

PathTurnAngleMaximum run on the sample path with inAllowedTurnDirection = Right
Errors
This filter can throw an exception to report error. Read how to deal with errors in Error Handling.
List of possible exceptions:
| Error type | Description |
|---|---|
| DomainError | Path with no turn angle on input in PathTurnAngleMaximum. |
Complexity Level
This filter is available on Advanced Complexity Level.
Filter Group
This filter is member of PathTurnAngleMaximum filter group.
See Also
- PathTurnAngleLocalMaxima – Finds the local maxima of the profile of turn angles of a path.
