You are here: Start » Filter Reference » Path » Path Basics » OpenPath
Basic| Module: | FoundationLite |
|---|
Removes the segment connecting the last point with the first one in a path.
| Name | Type | Description | |
|---|---|---|---|
 |
ioPath | Path |
Description
The operation reduces a closed path by removing a segment between its first point and the last one, therefore producing an open path.
If an open path is passed, the filter passes it onto output without any interference.
Examples
 |
 |

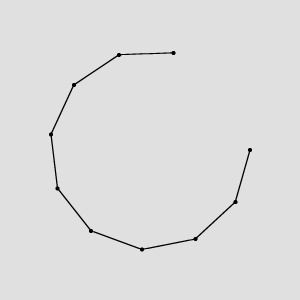

OpenPath run on a sample path.
Complexity Level
This filter is available on Basic Complexity Level.
See Also
- ClosePath – Adds the segment connecting the last point with the first one in a path.
