You are here: Start » Filter Reference » Path » Path Basics » CreateCirclePath
Basic| Module: | FoundationLite |
|---|
Creates a closed path containing cocircular, equidistant points.
| Name | Type | Range | Description | |
|---|---|---|---|---|
 |
inCircle | Circle2D | ||
|
inPointCount | Integer | 2 -  |
Number of points in the resulting path |
 |
outPath | Path | Output path | |
Description
The operation produces a closed path that consist of inPointCount equidistant points selected along the inCircle circumference.
Examples
Description of usage of this filter can be found in examples and tutorial: Meter, Counting Saw Teeth.
 |
 |

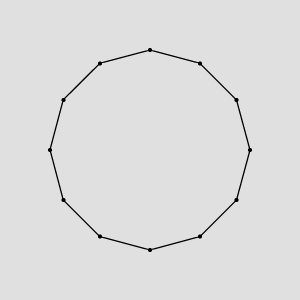

CreateCirclePath run using a sample circle with inPointCount = 12.
Complexity Level
This filter is available on Basic Complexity Level.
See Also
- CreateSegmentPath – Creates an open path containing collinear, equidistant points.
- CreateArcPath – Creates an open path containing cocircular, equidistant points.
