You are here: Start » Filter Reference » Image » Image Spatial Transforms » MirrorImage
Basic| Module: | FoundationLite |
|---|
Reverses the order of the input image columns or rows depending on inMirrorDirection value.
| Name | Type | Description | |
|---|---|---|---|
 |
inImage | Image | Input image |
|
inMirrorDirection | MirrorDirection | Reverse the order of image columns (horizontal direction) or rows (vertical direction). |
 |
outImage | Image | Output image |
Examples
Description of usage of this filter can be found in examples and tutorial: Image Modification Using the HMI.
 |
 |

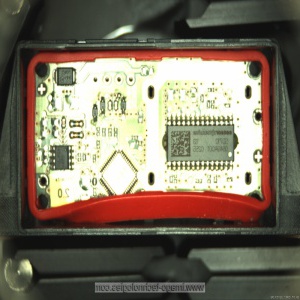

MirrorImage with inMirrorDirection = Horizontal.
|
 |

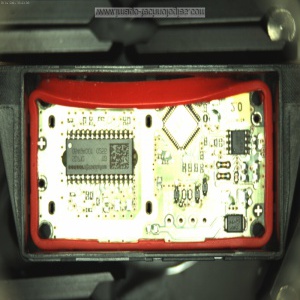

MirrorImage with inMirrorDirection = Vertical.
Hardware Acceleration
This operation is optimized for SSSE3 technology for pixels of types: 1xUINT8, 1xINT8, 1xUINT16, 1xINT16, 1xINT32, 1xREAL, 2xUINT8, 2xINT8, 2xUINT16, 2xINT16, 3xUINT8, 3xINT8, 4xUINT8, 4xINT8.
This operation is optimized for NEON technology for pixels of type: 3xUINT8.
This operation supports automatic parallelization for multicore and multiprocessor systems.
Complexity Level
This filter is available on Basic Complexity Level.
See Also
- TransposeImage – Flips and rotates an image so that columns are exchanged with rows.
