DrawShapeRegions_Palette_Deprecated

Advanced

Module: FoundationLite

Draws ShapeRegion objects on an image with multiple colors.

Name Type Description
Input value inImage Image Input image
Input value inShapeRegions ShapeRegionDeprecated?Array?
Input value inShapeRegionAlignment CoordinateSystem2D*
Input value inColors PixelArray*
Input value inDrawingStyle DrawingStyle
Input value inForceRgb Bool Filter will convert monochromatic image to RGB if needed
Output value outImage Image Output image

Hints

  • Connect an image source to the inImage input. Drawing will be done on this image.
    • If you want to draw on an empty background, use EmptyImage filter before.
  • Define inShapeRegions. This will be the primitives to be drawn.
  • Leave the inColors input not set to have all the primitives drawn with random colors. Set a custom array of colors here to decide explicitly how each of the primitives should be drawn.
  • Set inForceRgb to True, if you want to get a 3-channel output regardless of what is on the input.

Examples

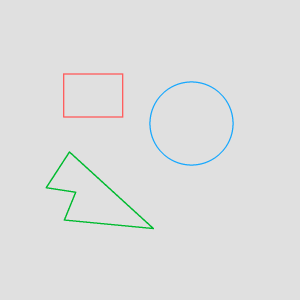

Example usage of the DrawShapeRegions_Palette_Deprecated on an empty image.

Complexity Level

This filter is available on Advanced Complexity Level.
