You are here: Start » Filter Reference » Geometry 2D » Geometry 2D Spatial Transforms » TranslateArc
Advanced| Module: | FoundationLite |
|---|
Translates an arc by a vector.
| Name | Type | Description | |
|---|---|---|---|
 |
inArc | Arc2D | |
|
inDelta | Vector2D | Translation vector |
|
inInverse | Bool | Switches to the inverse operation |
 |
outArc | Arc2D |
Examples
 |
 |

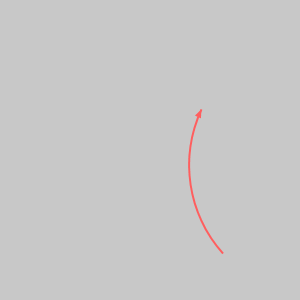

TranslateArc performed on the sample arc, inDelta = (150.0, 100.0) and inInverse = False.
Complexity Level
This filter is available on Advanced Complexity Level.
