RotateArc

Advanced

Module: FoundationLite

Rotates an arc clockwise around center point.

Name Type Description
Input value inArc Arc2D
Input value inCenter Point2D* Center of rotation (the arc's center by default)
Input value inAngle Real Clockwise rotation angle
Input value inInverse Bool Switches to the inverse operation
Output value outArc Arc2D

Examples

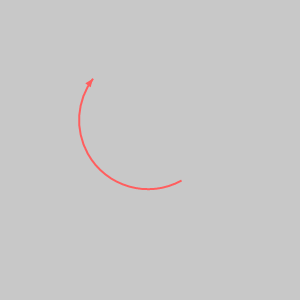

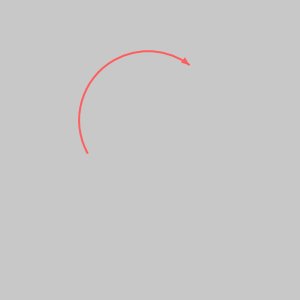

RotateArc performed on the sample arc, inCenter = Auto, inAngle = 90 and inInverse = False.

Complexity Level

This filter is available on Advanced Complexity Level.
