LineNormalVector

Advanced

Module: FoundationLite

Computes the normal vector of a line.

Name Type Description
Input value inLine Line2D
Input value inReverse Bool
Output value outVector Vector2D

Examples

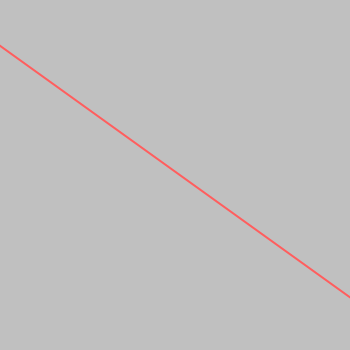

LineNormalVector performed on a line (left image) returns outVector (right image).

Errors

This filter can throw an exception to report error. Read how to deal with errors in Error Handling.

List of possible exceptions:

Error type Description
DomainError Indefinite line on input in LineNormalVector.

Complexity Level

This filter is available on Advanced Complexity Level.
