CircleSection

Basic

Module: FoundationLite

Computes an arciform section of the circle perimeter.

Name Type Description
Input value inCircle Circle2D Input circle
Input value inStartAngle Real Direction at which the arc begins
Input value inSweepAngle Real Angular length of the arc (may be negative)
Output value outArc Arc2D

Examples

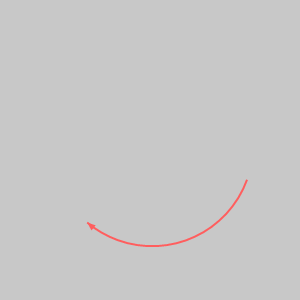

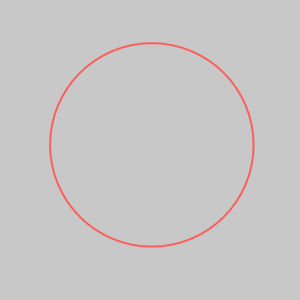

CircleSection performed on the sample circle, inStartAngle = 20.0 and inSweepAngle = 110.0.

Complexity Level

This filter is available on Basic Complexity Level.
