SegmentToSegmentDistance

Basic

Module: FoundationLite

Measures the distance between two segments.

Name Type Range Description
Input value inSegment1 Segment2D
Input value inSegment2 Segment2D
Input value inResolution Real 0.0 - Number of real-world units per one pixel
Output value outDistance Real
Output value outConnectingSegment Segment2D

Examples

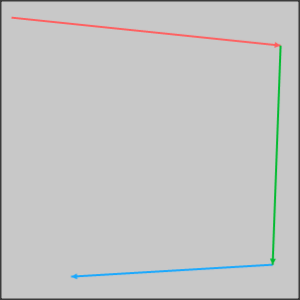

SegmentToSegmentDistance performed on two sample segments. The green segment is the value of outConnectingSegment output.

Complexity Level

This filter is available on Basic Complexity Level.
