Basic| Module: | FoundationLite |
|---|
Measures the distance between two points.
| Name | Type | Range | Description | |
|---|---|---|---|---|
 |
inPoint1 | Point2D | ||
|
inPoint2 | Point2D | ||
|
inResolution | Real | 0.0 -  |
Number of real-world units per one pixel |
 |
outDistance | Real | ||
|
outConnectingSegment | Segment2D | ||
Examples
Description of usage of this filter can be found in examples and tutorial: Badge Measurement, Gasket Inspection, Seat Mount, Washers, Parallel Image Saving, Shape Fitting: Gasket.
 |
 |

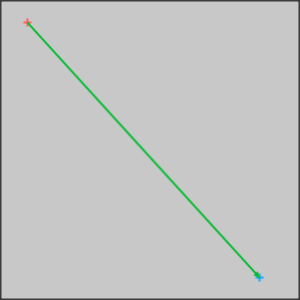

PointToPointDistance performed on two sample points. The green segment is the value of outConnectingSegment output.
Complexity Level
This filter is available on Basic Complexity Level.
