PointToCircleDistance

Basic

Module: FoundationLite

Measures the distance between a point and a circle.

Name Type Range Description
Input value inPoint Point2D
Input value inCircle Circle2D
Input value inResolution Real 0.0 - Number of real-world units per one pixel
Output value outDistance Real
Output value outConnectingSegment Segment2D

Examples

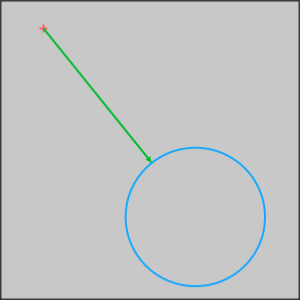

PointToCircleDistance performed on a sample point and a sample circle. The green segment is the value of outConnectingSegment output.

Complexity Level

This filter is available on Basic Complexity Level.
