Projects points onto a line.
| Name | Type | Description | |
|---|---|---|---|
 |
inPoints | Point2DArray | |
|
inLine | Line2D | |
 |
outProjectionPoints | Point2DArray | |
|
outProjectionSegment | Segment2D? | |
|
outMeanDistance | Real |
Description
The orientation of the resulting outProjectionSegment is always between 0 and 180 degrees.
Examples
 |
 |

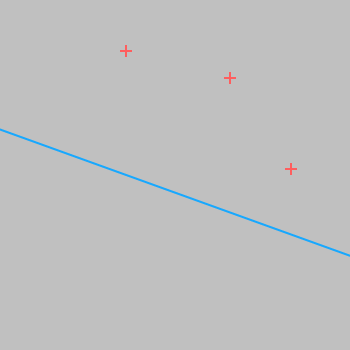

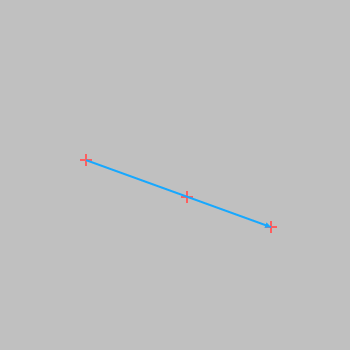

ProjectPointsOnLine performed on points and line.
Errors
This filter can throw an exception to report error. Read how to deal with errors in Error Handling.
List of possible exceptions:
| Error type | Description |
|---|---|
| DomainError | Indefinite line on input in ProjectPointsOnLine. |
Complexity Level
This filter is available on Advanced Complexity Level.
