You are here: Start » Filter Reference » Geometry 2D » Geometry 2D Constructions » ProjectPointOnLine
Advanced| Module: | FoundationLite |
|---|
Projects a point onto a line.
| Name | Type | Description | |
|---|---|---|---|
 |
inPoint | Point2D | |
|
inLine | Line2D | |
 |
outProjectionPoint | Point2D | |
|
outSignedDistance | Real |
Examples
 |
 |

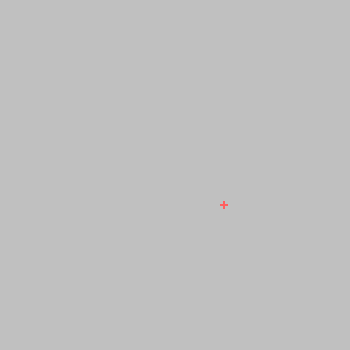

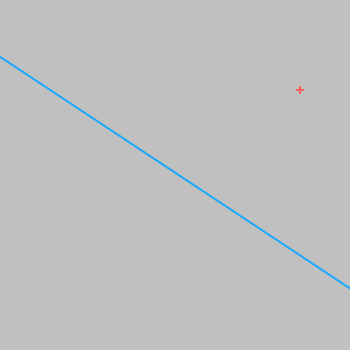

ProjectPointOnLine performed on point and line.
Errors
This filter can throw an exception to report error. Read how to deal with errors in Error Handling.
List of possible exceptions:
| Error type | Description |
|---|---|
| DomainError | Indefinite line on input in ProjectPointOnLine. |
Complexity Level
This filter is available on Advanced Complexity Level.
