HMI Handling Events - CSV Editor

Aim:

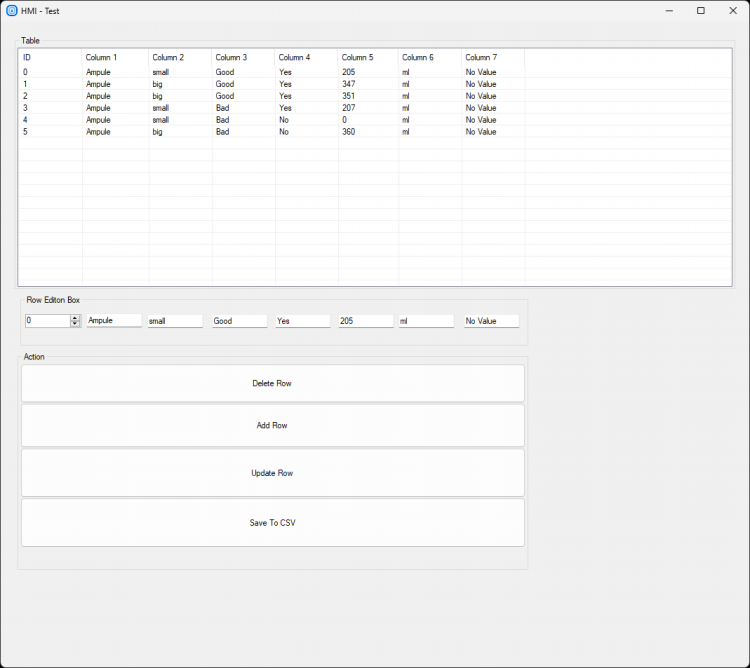

The application presents the HMI that allows users to edit a CSV file like a spreadsheet program.

Hints:

The application is fully driven by HMI Events.

Solution (AVS):

Macrofilter Main.

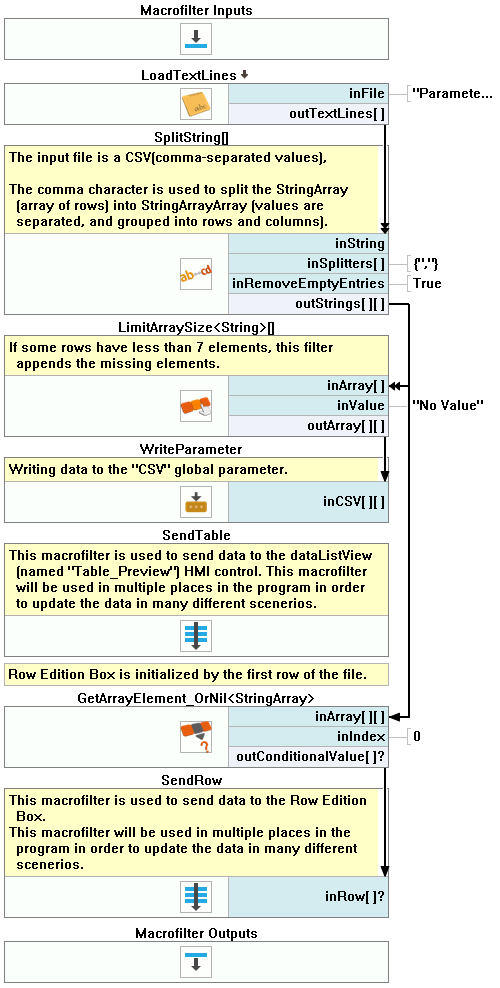

Macrofilter Initialize_HMI.

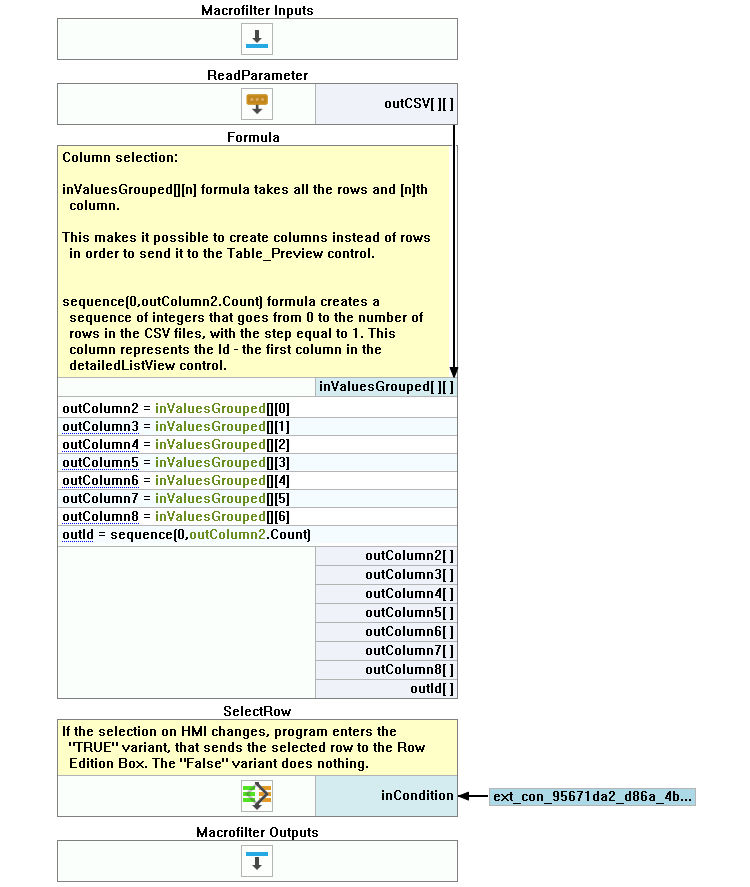

Macrofilter SendTable.

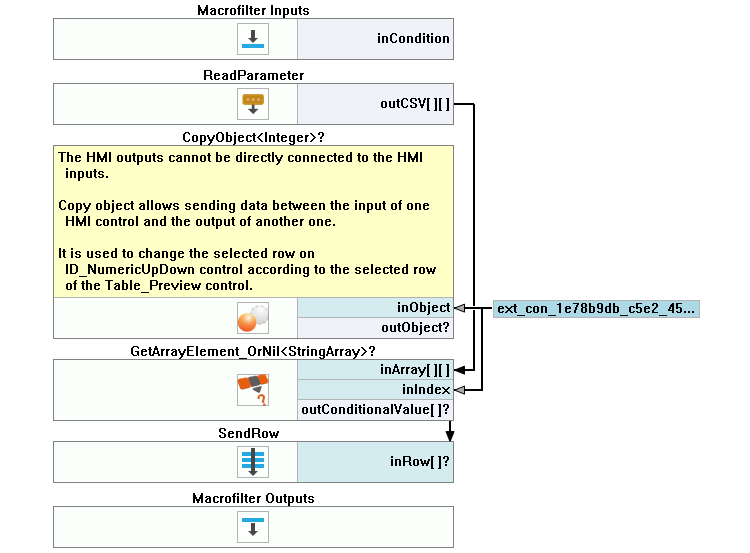

Macrofilter SelectRow(True).

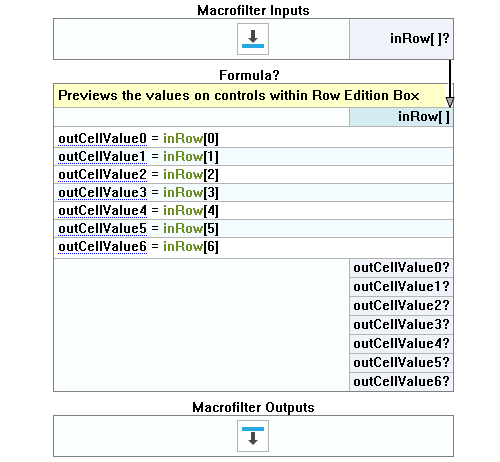

Macrofilter SendRow.

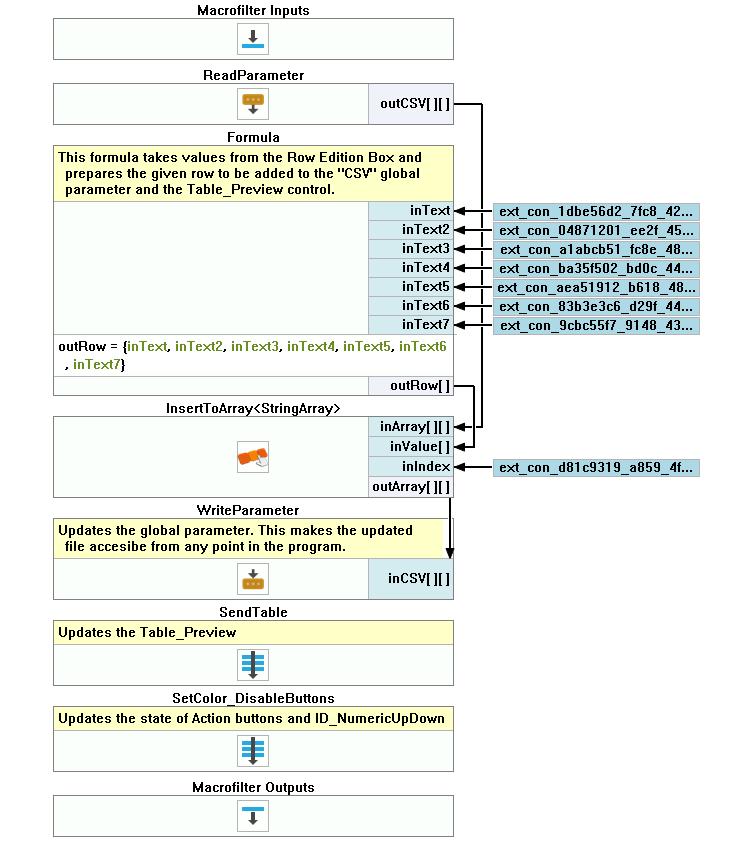

Macrofilter AddRow.

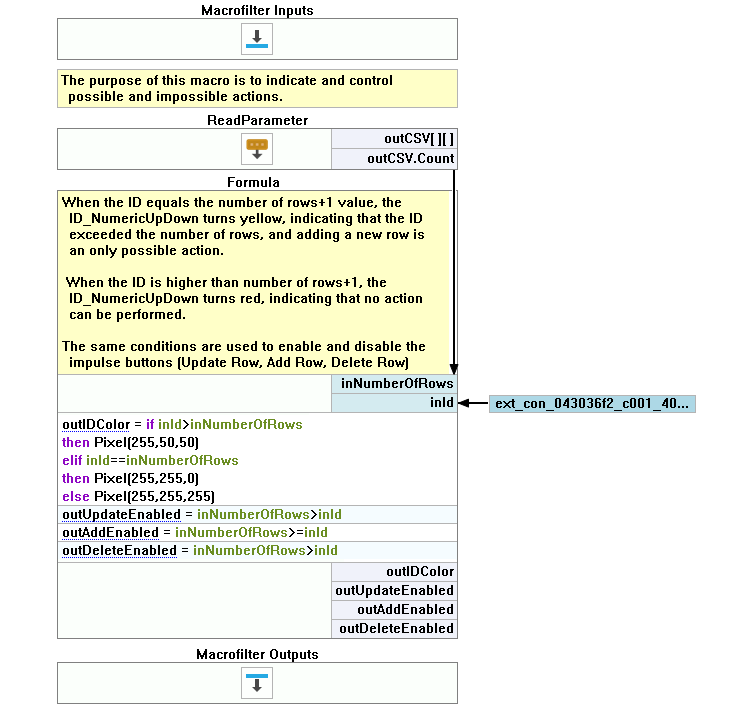

Macrofilter SetColor_DisableButtons.

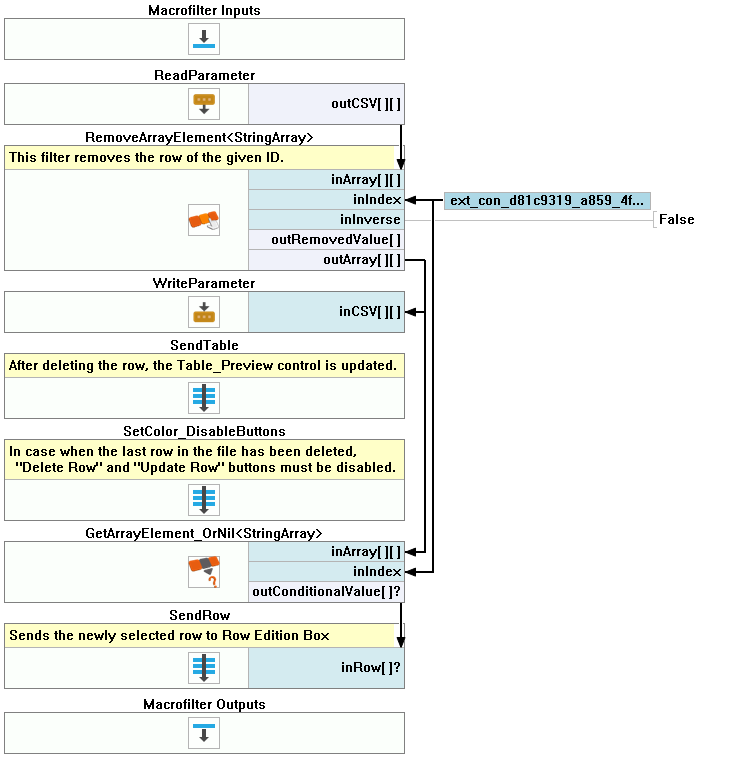

Macrofilter DeleteRow.

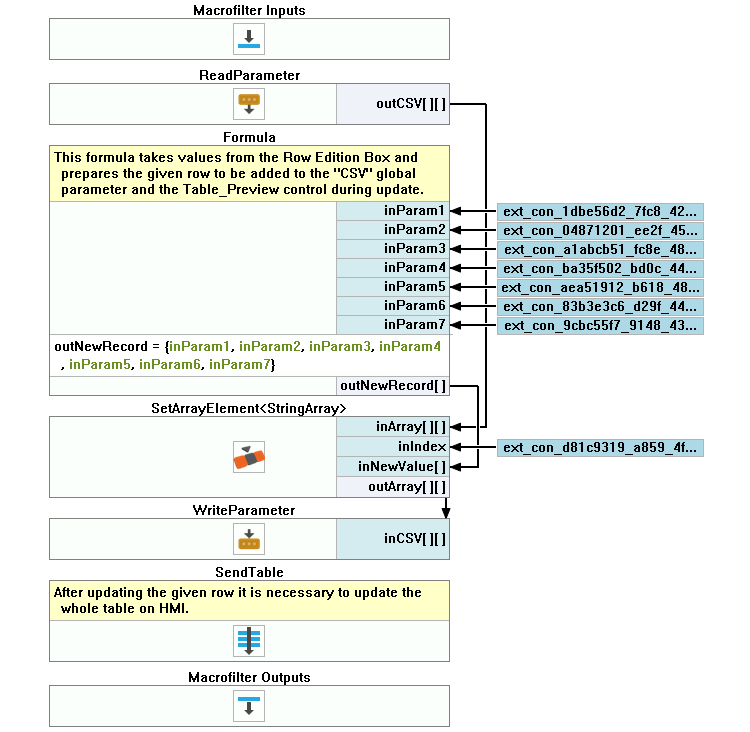

Macrofilter UpdateRow.

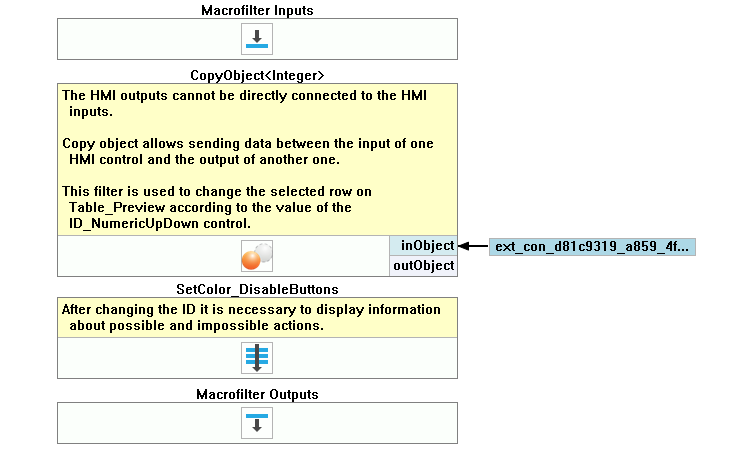

Macrofilter IndexValueChanged.

Macrofilter RowSelectionChanged.

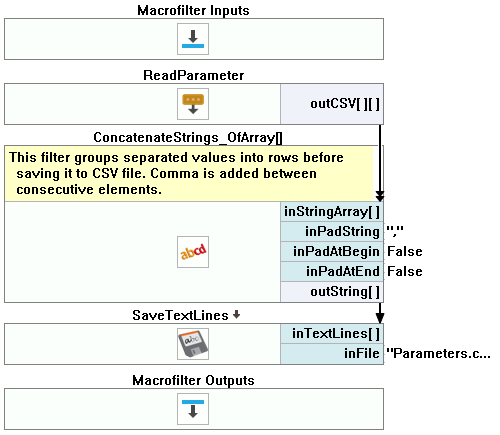

Macrofilter SaveToCSV.
