Barcodes (EAN13 Addon2)

Aim:

The task is to detect and recognize an EAN13 Addon2 barcode.

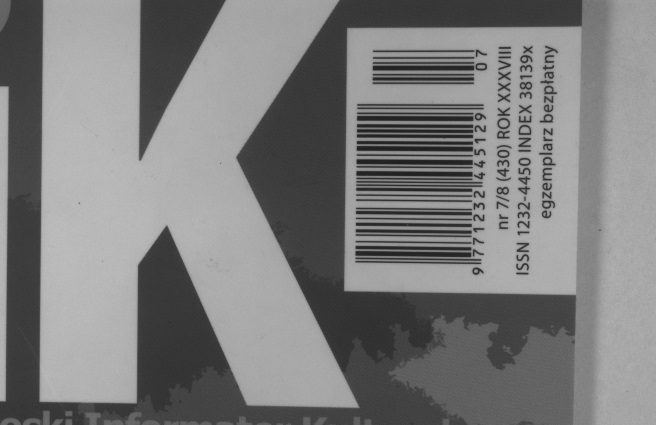

Input:

An image containing an EAN13 Addon2 barcode. The position of the barcode is variable.

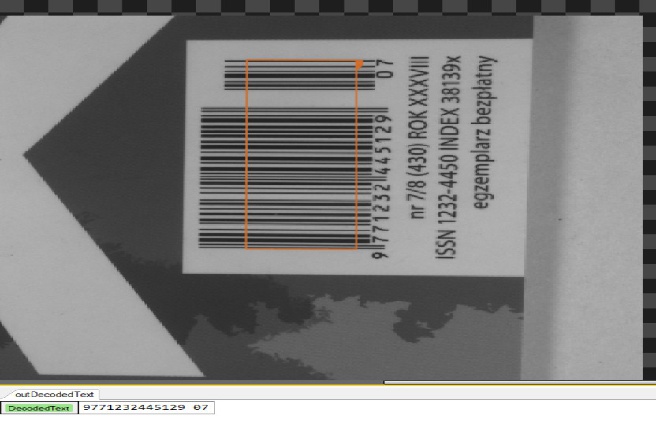

Output:

The detected barcode and decoded text.

Hints:

Labeling connections is explained in this article.

Solution (AVS):

In the Workspace Explorer, open the workspace Examples, and in the Filmstrip window, select the Barcode_EAN13_Addon2 dataset. Drag the Image channel to the ACQUIRE section.
Add the ReadSingleBarcode filter to detect and recognize the barcode.
Set the inBarcodeParams.Format parameter to EAN13Addon2.
Show the decoded text in a new preview window.

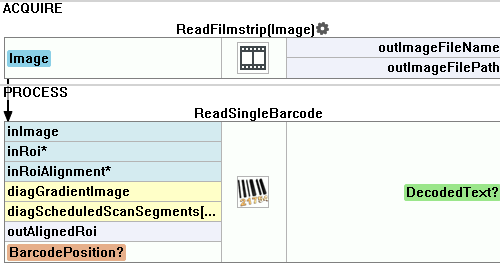

Macrofilter Main

Used Filters
