Brick destroy (Game)

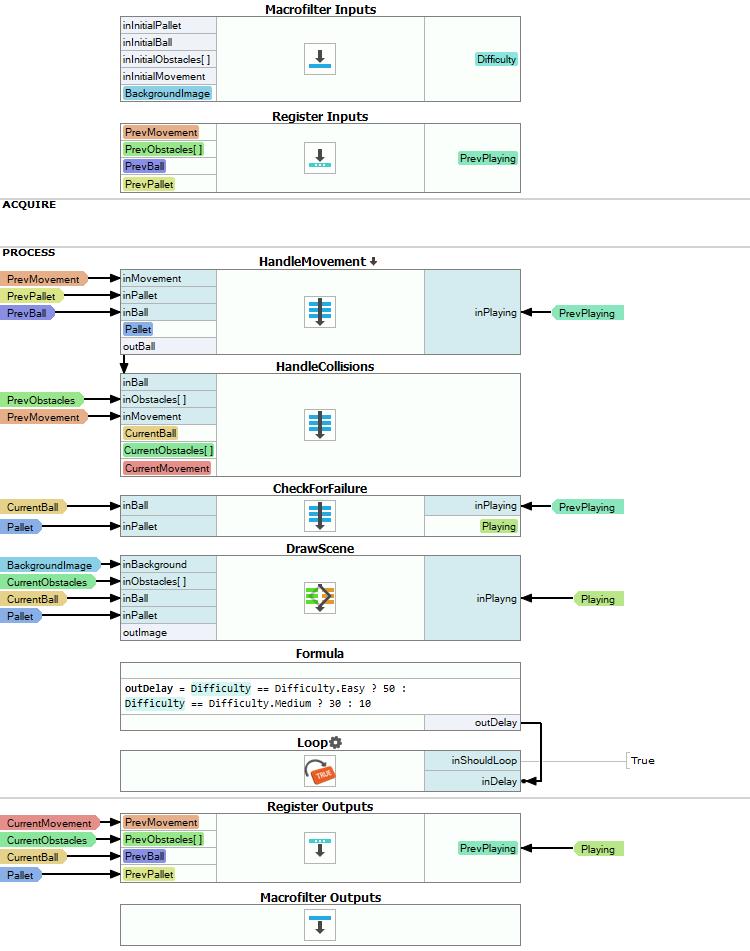

Macrofilter Main

Icon	Name	Description
	RegionIntersection	Computes the common part of two regions.
	DrawCircles_SingleColor	Draws circles on an image with a single color.
	CreateCircleRegion	Creates a circular region corresponding to a given circle.
	DilateRegion	Making the region thicker or filling-in small holes within it.
	GetKeyboardKeyState	Checks if the specified keyboard key is down and if it is toggled.
	DrawRegions_MultiColor	Draws regions on an image with multiple colors.
	DrawStrings_MultiColor	Draws strings (text) on an image with multiple colors.
	RegionDifference	Computes a region containing pixels from the first input region but not from the second input region.
	TranslateRegion	Translates a region by a given number of pixels along each axis.
	RegionBoundingBox	Computes the smallest box containing a region.
	CreateBoxRegion	Creates a rectangular region corresponding to a given box.
	ClassifyByRange	E.g. selection of the objects (e.g. blobs) whose associated values (e.g. area) meet the specified minimum and maximum requirements.
	Loop	Put this filter into a task that should have a loop, but does not have any other loop generators (e.g. GrabImage).
	CreateIntegerSequence	Creates an arithmetic sequence of integer numbers.
	DrawRegions_SingleColor	Draws regions on an image with a single color.
	EmptyImage	Most typically used to prepare a background for image drawing tools.
