CreateImageTiles_AsRegions_Deprecated

Basic

Module: FoundationBasic

Generates an array of regions covering the area of an image.

Name Type Range Description
Input value
 inImageFormat ImageFormat Format of image for which tiles will be produced.
Input value
 inTileWidth Integer 1 - Demanded tile width.
Input value
 inTileHeight Integer* 1 - Demanded tile height; equals inTileWidth when set to Auto.
Input value
 inHorizontalStep Integer* 1 - Defines horizontal space between consecutive tiles; defaults to tile width. Can be used to produce overlapping tiles.
Input value
 inVerticalStep Integer* 1 - Defines vertical space between consecutive tiles; defaults to tile height. Can be used to produce overlapping tiles.
Input value
 inOverflowControl Bool When set to true, overflowing tiles will be removed form outTiles array.
Output value
 outTiles RegionArray Array containing produced tiles.
Output value
 outRowCount Integer Number of generated tiles rows.
Output value
 outColumnCount Integer Number of generated tiles per row.

Examples

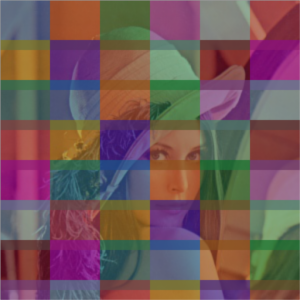

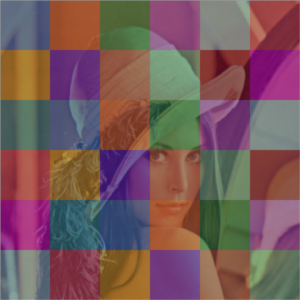

CreateImageTiles_AsRegions_Deprecated without and with vertical overlap.

Complexity Level

This filter is available on Basic Complexity Level.

See Also

  • CutImageIntoTiles – Generates an array of small images by cutting the input image.
