Blister Inspection (NET GmbH)

Aim

The task is to detect missing and broken pills in a blister.

Input

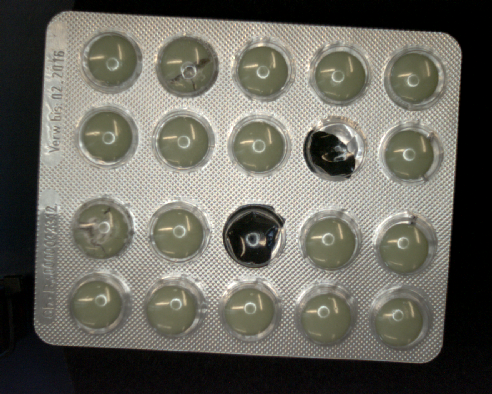

An image of a blister. The position of the object is variable, but limited.

Output

Detected missing and broken pills:

Hints

As variations of the object positions are limited, it can be located accurately with a very standard and fast Shape Fitting approach. With two FitSegmentToEdges filters it is possible to locate the top and the left edges. The found rectangle can be used as a reference for further inspections.

In this case pills can be easily found using high level tools for color analysis like CheckPresence_PixelAmount.

Labeling connections is explained in this article.

Solution (AVS)

Create variant macrofilter GrabImage with forking port inSource of type String.
Add two variants Files and Camera. And create output of type Image.
To the variant Files add EnumerateImages to get images from a directory. Connect a filter output to a macrofilter output.
To the variant Camera add filter GigEVision_GrabImage to get images from your camera. If your camera does not support GigeVision standard use the other filter. Connect a filter output to a macrofilter output.
To find blister horizontal and vertical edges must be found using a Shape Fitting technique. Add two FitSegmentToEdges filters and setup scanning paths like on the image below. Set inEdgeScanParams.EdgeTransition to DarkToBright.
To find a top-left point of blister segments must be converted to lines. The top-left point will be the intersection of lines created from found segments. Add filter LineLineIntersection and connect found segments.
To create a reference rectangle, rotation of the blister is necessary. To find rotation, add filter SegmentOrientation and connect to it segment found on the top of the blister.
Add filter CreateRectangle and connect to it the top-left point of blister, connect rectangle orientation from SegmentOrientation.
Size of the blister can be found using the measuring tool.
Set CreateRectangle.inWidth to 1074. Set CreateRectangle.inWidth to 873.
To create reference CoordinateSystem2D add filter CreateCoordinateSystemFromRectangle and connect to it the previously created rectangle.
Create a new macrofilter output outReference from the output of CreateCoordinateSystemFromRectangle.
When a reference system was found, places containing pills should be set. Create a new global parameter of type Circle2D Array and name it Circles.
Set Circles value like on the image below. Circles will be used to determine whether marked pill is damaged or not.

Remember to set outReference as the Coordinate system in the Circle Editor.
To improve color analysis, the input image should be blurred. Blurring makes colors on the image more uniform. Add filter SmoothImage_Gauss and set inStdDevX to 3.0.
Check presence of the pill using filter CheckPresence_PixelAmount.
- Set inBeginHue to 26.
- Set inEndHue to 52.
- Set inMinSaturation to 42.
- Set inMaxSaturation to Auto.
- Set inMinBrightness to 62.
- Set inMaxBrightness to Auto.
- Set inMinAmount to 0.8.
- Set inMaxAmount to Auto.
Selected colors can be found in the outForeground output. Result is showed on the image below.
To CheckPresence_PixelAmount.inRoi connect Circles and to CheckPresence_PixelAmount.inRoiAlignment connect, earlier created, CoordinateSystem
Using filter DrawShapeRegions_MultiColor draw results. Use data from the outIsPresent and outAlignedRoi.

Macrofilter Main

Macrofilter GrabImage(Files) loads images from a directory.

Macrofilter GrabImage(Camera) gets images from the camera using the GigEVision interface.

Used Filters

Icon	Name	Description
	CreateCoordinateSystemFromRectangle	Most often used to define an object alignment from a filter like RegionBoundingRectangle.
	GigEVision_GrabImage	The most recommended filter for working with GigE Vision devices.
	FitSegmentToEdges	Precise detection of a straight edge, whose rough location is known beforehand.
	CheckPresence_PixelAmount	Quick and easy presence verification, e.g. for missing caps, screws, labels.
	LineLineIntersection	Computes a common point of two lines.
	SmoothImage_Gauss	Removal of gaussian noise from images.
	CreateRectangle	Creates a rectangle from an aligned point.
	DrawShapeRegions_MultiColor	Draws shape regions on an image with multiple colors.
	EnumerateImages	Emulates image acquisition with images stored on disk.
	SegmentOrientation	Computes the orientation of a segment.
