Creates a segment region.
Syntax
C++
C#
void avl::CreateSegmentRegion ( const avl::Segment2D& inSegment, atl::Optional<const avl::CoordinateSystem2D&> inSegmentAlignment, float inWidth, int inFrameWidth, int inFrameHeight, bool inRound, avl::Region& outRegion, atl::Optional<avl::Segment2D&> outAlignedSegment = atl::NIL )
Parameters
Name | Type | Range | Default | Description | |
---|---|---|---|---|---|
inSegment | const Segment2D& | ||||
inSegmentAlignment | Optional<const CoordinateSystem2D&> | NIL | |||
inWidth | float | 1.0 - | Segment width | ||
inFrameWidth | int | 0 - 65535 | |||
inFrameHeight | int | 0 - 65535 | |||
inRound | bool | Make ends of segment round | |||
outRegion | Region& | Output region | |||
outAlignedSegment | Optional<Segment2D&> | NIL |
Optional Outputs
The computation of following outputs can be switched off by passing value atl::NIL
to these parameters: outAlignedSegment.
Read more about Optional Outputs.
Description
Filter creates region based on an input Segment2D. To specify line width use inWidth.

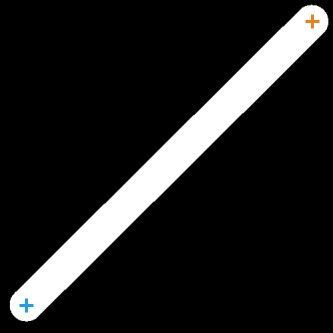

Filter creates segment region by creating rectangle located between inSegment points. To make ends round use inRound.
