GroupRegionsByLines


Header: AVL.h
Namespace: avl
Module: OCR

Splits an array of blobs by distance to computed base lines.

Syntax

C++
C#

void avl::GroupRegionsByLines
(
	const atl::Array<avl::Region>& inRegions,
	const avl::Rectangle2D& inRoi,
	const atl::Optional<avl::CoordinateSystem2D>& inRoiAlignment,
	const int inLinesCount,
	const float inLineWidth,
	const bool inRemoveOutliers,
	atl::Array<atl::Array<avl::Region>>& outLines,
	atl::Array<avl::Region>& outLine0,
	atl::Array<avl::Region>& outLine1,
	atl::Array<avl::Region>& outLine2,
	atl::Array<avl::Region>& outLine3,
	avl::Rectangle2D& outAlignedRoi,
	atl::Array<avl::Segment2D>& diagLines,
	atl::Array<avl::Rectangle2D>& diagLineRanges,
	atl::Array<avl::Point2D>& diagRegionPoints
)

Parameters

Name Type Range Default Description
Input value
 inRegions const Array<Region>& Input regions (parts of characters)
Input value
 inRoi const Rectangle2D& Range of character classification
Input value
 inRoiAlignment const Optional<CoordinateSystem2D>& NIL
Input value
 inLinesCount const int 0 - 1 ROI is divided into inLinesCount lines
Input value
 inLineWidth const float 0.0 - 1.0f Value of line range used if inRemoveOutliers is set to TRUE
Input value
 inRemoveOutliers const bool False If this flag is set blobs with distance greater than inLineWidth are removed.
Output value
 outLines Array<Array<Region>>& Lines in single Array
Output value
 outLine0 Array<Region>&
Output value
 outLine1 Array<Region>&
Output value
 outLine2 Array<Region>&
Output value
 outLine3 Array<Region>&
Output value
 outAlignedRoi Rectangle2D&
Diagnostic input
 diagLines Array<Segment2D>& Segments which indicates the position of lines
Diagnostic input
 diagLineRanges Array<Rectangle2D>& Rectangles represents range of lines which are included if inRemoveOutliers is set
Diagnostic input
 diagRegionPoints Array<Point2D>& Point which indicates region position

Examples

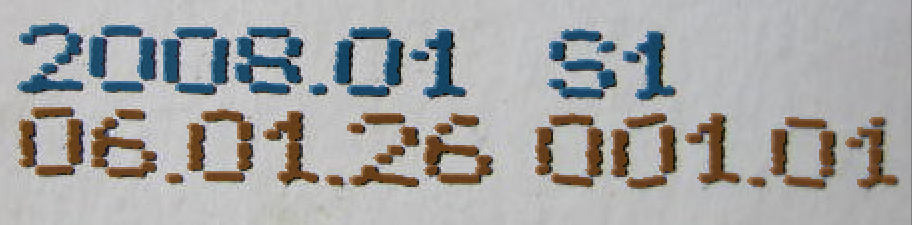

As you can see in the below picture, the filter's task is to divide the input region into several sub-regions by its placement in a line. As a result, each line represents a separate region.

Exemplary result of the filter's usage.
