DrawRectangles_TwoColors

This is Filter Equivalent. This function may be present in generated code, but should not be used in hand-written code.

Header:	AVL.h
Namespace:	avs
Module:	FoundationLite

Draws rectangles on an image with two colors, depending on the status of each rectangle.

Applications: Usually: green or red for pass/fail status.

Syntax

void avs::DrawRectangles_TwoColors
(
	const avl::Image& inImage,
	atl::Conditional<const atl::Array<atl::Conditional<avl::Rectangle2D>>&> inRectangles,
	atl::Optional<const avl::CoordinateSystem2D&> inRectangleAlignment,
	const avl::Pixel& inColorIfTrue,
	const avl::Pixel& inColorIfFalse,
	atl::Conditional<const atl::Array<atl::Conditional<bool>>&> inConditions,
	const avl::DrawingStyle& inDrawingStyle,
	const bool inForceRgb,
	avl::Image& outImage
)

Parameters

Name	Type	Default	Description
inImage	const Image&		Input image
inRectangles	Conditional<const Array<Conditional<Rectangle2D>>&>	{ }
inRectangleAlignment	Optional<const CoordinateSystem2D&>	NIL
inColorIfTrue	const Pixel&	Pixel ( X: 0.0f Y: 200.0f Z: 0.0f W: 0.0f )
inColorIfFalse	const Pixel&	Pixel ( X: 200.0f Y: 0.0f Z: 0.0f W: 0.0f )
inConditions	Conditional<const Array<Conditional<bool>>&>	{ }
inDrawingStyle	const DrawingStyle&	DrawingStyle ( DrawingMode: HighQuality Opacity: 1.0f Thickness: 1.0f Filled: False PointShape: Nil PointSize: 1.0f )
inForceRgb	const bool	True	Filter will convert monochromatic image to RGB if needed
outImage	Image&		Output image

In-place Processing

This function supports in-place data processing - you can pass the same reference to inImage and outImage

Description

Filter draws rectangles on an input image.

If an rectangle dimensions exceeds image size it will not be drawn or will be drawn partially.

To indicate the Rectangle orientation set inDrawingStyle.PointShape and inDrawingStyle.Size.

Rectangle drawn with set orientation indicator inDrawingStyle.PointShape = Circle and inDrawingStyle.Size = 10.

Hints

Define inRectangles. This will be the primitives to be drawn.
Define inConditions with the boolean values indicating the class (usually: OK/NOK) for each input primitive.
Set the inColorIfTrue and inColorIfFalse inputs to define the two colors used for drawing.
Set inForceRgb to True, if you want to get a 3-channel output regardless of what is on the input.
Set inDrawingStyle to control quality, opacity, thickness, filling, point shapes and sizes.

Examples

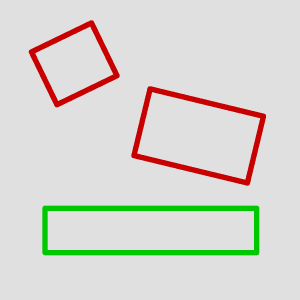

Example usage of the DrawRectangles_TwoColors on an empty image.

Errors

List of possible exceptions:

Error type	Description
DomainError	The sizes inRectangles and inConditions do not match in DrawRectangles_TwoColors.
