RegionInscribedBox


Module: FoundationBasic

Computes the largest box contained in a region.

Name Type Range Description
inRegion Region Input region
inMinAspectRatio Real 0.0 - Minimal aspect ratio of found box
inMaxAspectRatio Real* 0.0 - Maximal aspect ratio of found box (reciprocal of inMinAspectRatio by default)
inMinWidth Integer 1 - 65535 Minimal width of found box
inMaxWidth Integer* 1 - 65535 Maximal width of found box
inMinHeight Integer 1 - 65535 Minimal height of found box
inMaxHeight Integer* 1 - 65535 Maximal height of found box
outBox Box? Found box with largest area

Examples

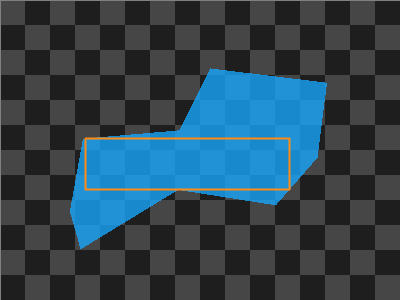

RegionInscribedBox performed on a sample region with inMaxAspectRatio = Auto.

RegionInscribedBox performed on a sample region with inMaxAspectRatio = 2.0.

Complexity Level

This filter is available on Basic Complexity Level.
