ImageProjection


Module: FoundationLite

Computes the average (or other statistic) for each image row or column and then merges the obtained results into a profile.

Name Type Description
inImage Image Monochromatic image
inRoi Region* Range of pixels to be processed
inProjectionDirection ProjectionDirection Combine pixel values for image rows (horizontal) or columns (vertical)
inProjectionMode ProjectionMode Determines how the pixel values are combined
outProfile Profile Output profile

Requirements

For input inImage only pixel formats are supported: 1⨯uint8, 1⨯int8, 1⨯uint16, 1⨯int16, 1⨯int32, 1⨯real.

Read more about pixel formats in Image documentation.

Description

Computes the average (or other statistic) for each image row or column and then merges the obtained results into a profile.

Examples

ImageProjection performed on a lena sample.

Mode Horizontal Direction Vertical Direction

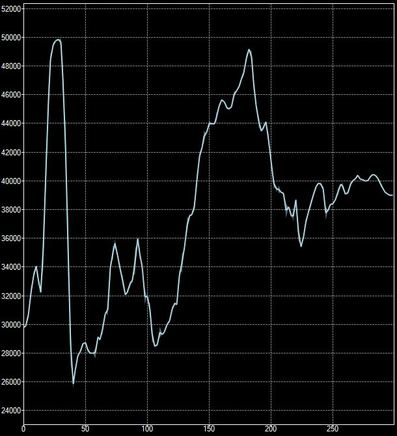

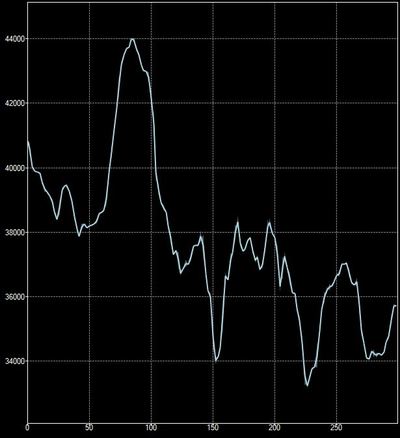

Sum

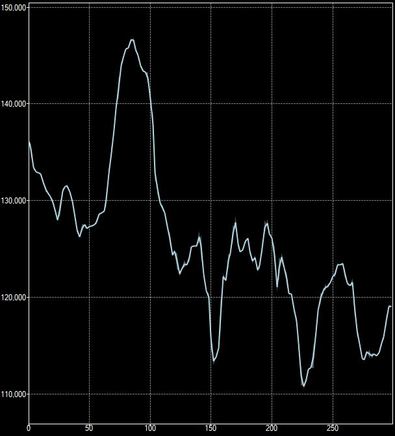

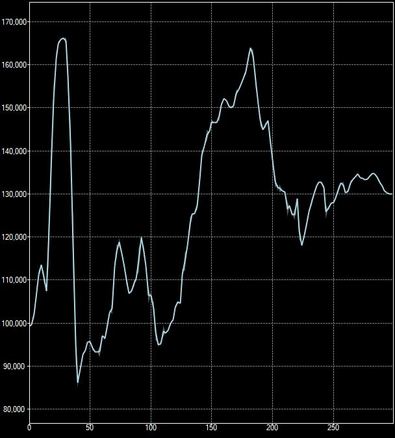

Average

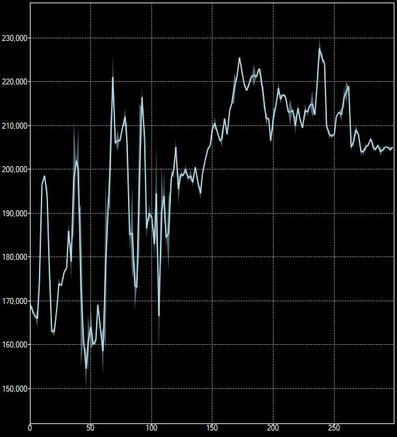

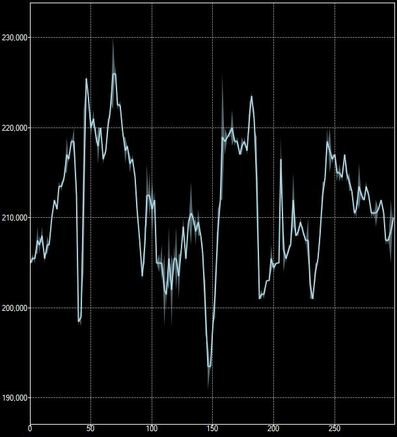

Maximum

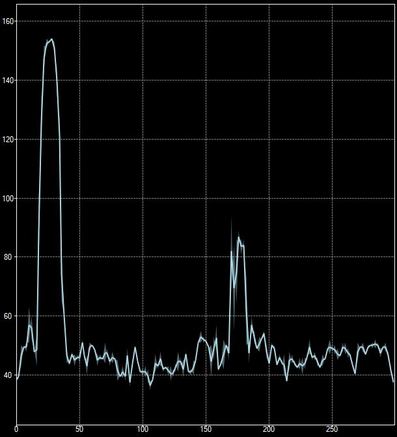

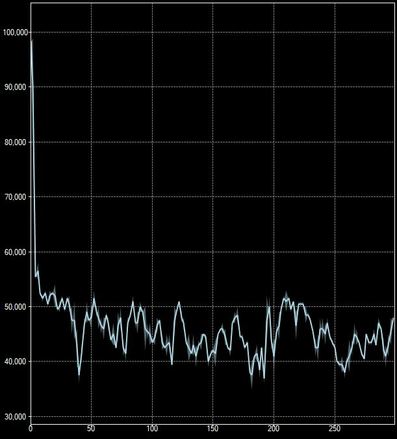

Minimum

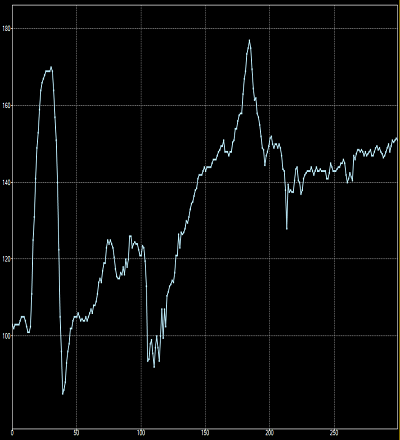

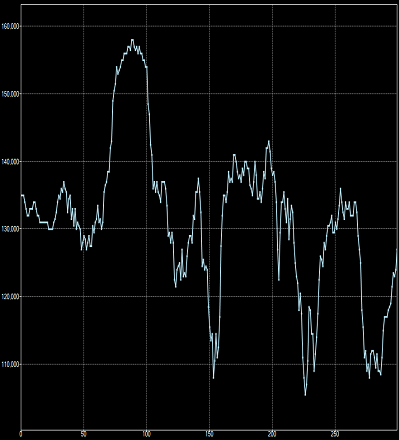

Median

Hardware Acceleration

This operation supports automatic parallelization for multicore and multiprocessor systems.

Errors

This filter can throw an exception to report error. Read how to deal with errors in Error Handling.

List of possible exceptions:

Error type Description
DomainError Region exceeds an input image in ImageProjection.
DomainError Not supported inImage pixel format in ImageProjection.

Complexity Level

This filter is available on Advanced Complexity Level.
