AVL.ConvertToEquidistantPath

Creates a new path whose characteristic points lie on the input path, but are equally spaced.

Namespace:AvlNet
Assembly:AVL.NET.dll

Syntax

C++
C#

public static void ConvertToEquidistantPath
(
	AvlNet.Path inPath,
	float inStep,
	AvlNet.EquidistanceType inEquidistanceType,
	AvlNet.Path outPath
)

Parameters

Name Type Range Default Description
inPathAvlNet.PathInput path.
inStepfloat<0.0f, INF>1.0fRequested distance between consecutive points. Default value: 1.0f.
inEquidistanceTypeAvlNet.EquidistanceTypeDefines how the distance is measured.
outPathAvlNet.PathOutput path.

Description

The operation follows a path from its beginning to the end, reselecting its characteristic points every inStep pixels. Note that this operation can significantly change the shape of a path, especially when the inStep value is relatively big. The output path's last point is mostly not the same as the input path's last point, because it would lead to last output path's segment being too short.

To reduce the number of points in a path preserving its shape, one can use ReducePath filter.

Examples

ConvertToEquidistantPath run on the sample path with inStep = 10 and inEquidistanceType = OutputPathEquidistance.

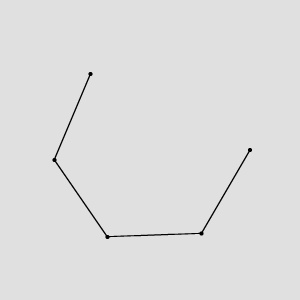

ConvertToEquidistantPath run on the sample path with inStep = 100 and inEquidistanceType = OutputPathEquidistance.

Errors

List of possible exceptions:

Error type Description
DomainError Input step has to be positive in ConvertToEquidistantPath.
