PathToPointDistanceProfile


Header: AVL.h
Namespace: avl
Module: FoundationBasic

Computes the profile of distances between the specified point and the characteristic points of a path.

Syntax

C++
C#

void avl::PathToPointDistanceProfile
(
	const avl::Point2D& inPoint,
	const avl::Path& inPath,
	float inResolution,
	avl::Profile& outDistanceProfile,
	atl::Optional<atl::Array<float>&> outDistances = atl::NIL,
	atl::Optional<atl::Array<avl::Segment2D>&> outConnectingSegments = atl::NIL
)

Parameters

Name Type Range Default Description
inPoint const Point2D& Input point
inPath const Path& Input path
inResolution float 0.0 - 1.0f
outDistanceProfile Profile& Profile of distances between input point and consecutive points of input path
outDistances Optional<Array<float>&> NIL Distances between input point and consecutive points of input path
outConnectingSegments Optional<Array<Segment2D>&> NIL Segments connecting input point and consecutive points of input path

Optional Outputs

The computation of following outputs can be switched off by passing value atl::NIL to these parameters: outDistances, outConnectingSegments.

Read more about Optional Outputs.

Description

The operation iterates over characteristic points of inPath and at each point computes the distance from this point to inPoint. The operation computes outDistanceProfile profile of consecutive distances and, additionally, the outConnectingSegments array of corresponding line segments.

Examples

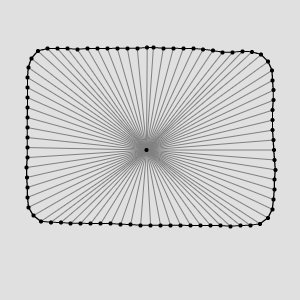

The resulting outConnectingSegments drawn onto the input data.

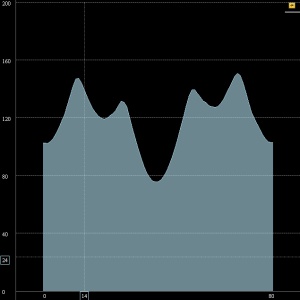

The resulting outDistanceProfile.
