ThresholdToRegion


Header: AVL.h
Namespace: avl
Module: FoundationBasic

Creates a region containing image pixels with values within the specified range.

Applications: Extraction of a region of objects that can be defined by a salient brightness.

Syntax

C++
C#

void avl::ThresholdToRegion
(
	const avl::Image& inImage,
	atl::Optional<const avl::Region&> inRoi,
	atl::Optional<float> inMinValue,
	atl::Optional<float> inMaxValue,
	float inHysteresis,
	avl::Region& outRegion
)

Parameters

Name Type Range Default Description
inImage const Image& Input image
inRoi Optional<const Region&> NIL Region of interest
inMinValue Optional<float> 128.0f Minimum value of a pixel that is considered foreground (Auto = -INF)
inMaxValue Optional<float> NIL Maximum value of a pixel that is considered foreground (Auto = +INF)
inHysteresis float 0.0 - 0.0f Defines how much the threshold criteria are lowered for pixels neighboring with other foreground pixels
outRegion Region& Output region

Description

The operation is a cousin of ThresholdImage yet computes a region instead of an image. The resulting region contains those pixels of the input image that meet one of the following conditions:

  • Pixel value is in range [inMinValue, inMaxValue].
  • Pixel value is in range [inMinValue-inHysteresis, inMinValue) or in range (inMaxValue, inMaxValue+inHysteresis] and in the processed image there is a path of consecutive pixels of value in range [inMinValue-inHysteresis, inMaxValue+inHysteresis] that connects the pixel being considered and any pixel with value in range [inMinValue, inMaxValue].

If any of the parameters inMinValue, inMaxValue is not set, it is assumed to be, accordingly, -infinity or infinity.

In the multichannel images the operation uses an average of channel values in each pixel.

Hints

  • Define inMinValue to extract bright objects (brighter than the specified value).
  • Define inMaxValue to extract dark objects (darker than the specified value).
  • Use inHysteresis to allow weaker threshold for pixels neighboring with already extracted ones.

Examples

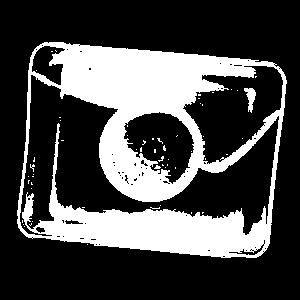

ThresholdToRegion performed on the sample image with inMinValue = 80.0, inMaxValue = auto.

Hardware Acceleration

This operation is optimized for SSE2 technology for pixels of types: 1xUINT8, 3xUINT8, 1xInt16.

This operation supports automatic parallelization for multicore and multiprocessor systems.

Errors

List of possible exceptions:

Error type Description
DomainError Region exceeds an input image in ThresholdToRegion.

See Also

  • ThresholdImage – Transforms each pixel value to maximum or minimum depending on whether they belong to the specified range.
