Creates a grid-shaped region with given parameters.
Name | Type | Range | Description | |
---|---|---|---|---|
inGridBoundingBox | Box | |||
inHorizontalStep | Integer | 1 - | Horizontal distance between vertical grid lines. | |
inVerticalStep | Integer | 1 - | Vertical distance between horizontal grid lines. | |
inFrameWidth | Integer | 0 - | Width of the created region's frame | |
inFrameHeight | Integer | 0 - | Height of the created region's frame | |
outRegion | Region | Output region |
Description

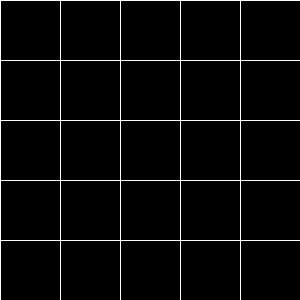

The operation creates a region in a shape of a one-pixel-wide grid. Grid is described by its width, height, distances between its lines and coordinates of its upper-left corner.
The inFrameWidth and inFrameHeight parameters most often should be set equal to the dimensions of the image this region will be used with.
Hints
- Remember to set inFrameWidth and inFrameHeight inputs to specify the region frame.
Examples
Errors
This filter can throw an exception to report error. Read how to deal with errors here: Error Handling
Error type | Description |
---|---|
DomainError | Output region too big in CreateGridRegion. |
Complexity Level
This filter is available on Basic Complexity Level.
