Rubber Ring

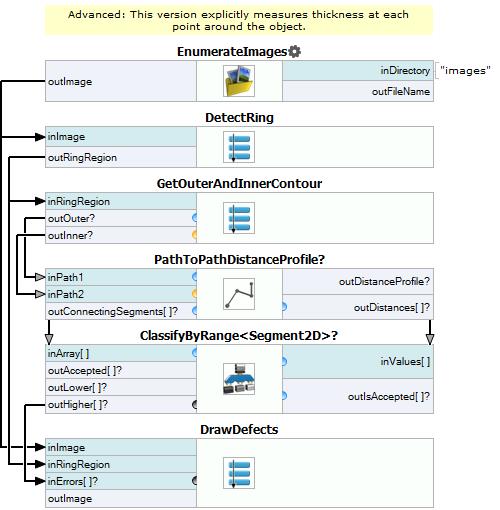

Macrofilter Main

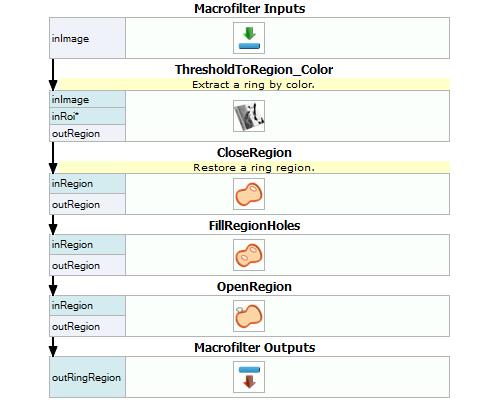

Macrofilter DetectRing

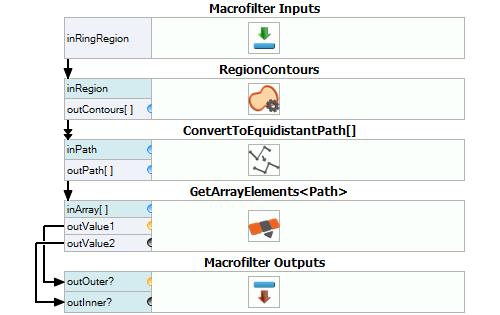

Macrofilter GetOuterAndInnerContour

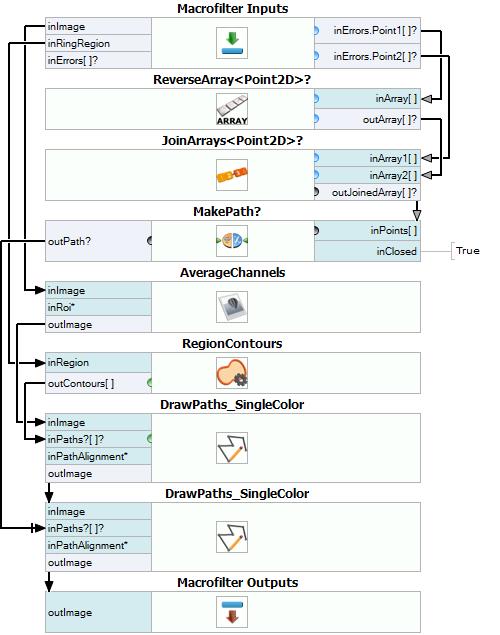

Macrofilter DrawDefects
Used Filters
Icon | Name | Description |
---|---|---|
GetArrayElements | Extracts up to 8 individual elements from an array. | |
CloseRegion | Filling-in small gaps in a region without making it thicker. | |
ConvertToEquidistantPath | Creates a new path whose characteristic points lie on the input path, but are equally spaced. | |
ThresholdToRegion_Color | Color analysis with a given reference color. | |
PathToPathDistanceProfile | Computes the profile of distances between two paths. | |
ReverseArray | Creates an array of the input array elements in reversed order. | |
FillRegionHoles | Extends the input region so that it contains also all the pixels previously lying in its holes. | |
ClassifyByRange | E.g. selection of the objects (e.g. blobs) whose associated values (e.g. area) meet the specified minimum and maximum requirements. | |
DrawPaths_SingleColor | Draws paths on an image with a single color. | |
JoinArrays | Concatenates the input arrays one after another. | |
AverageChannels | Creates a monochromatic image by averaging the input image channels. | |
EnumerateImages | Emulates image acquisition with images stored on disk. | |
MakePath | Creates a path structure. | |
OpenRegion | Removing small parts from a region without making it thinner. | |
RegionContours | Computes an array of closed paths corresponding to the contours of the input region. |
